Price: £175.99
(as of Oct 10, 2025 22:42:44 UTC – Details)

This wind-solar hybrid street light controller is specially designed for small off-grid use, use it to charge wind turbines and solar panel batteries safely and efficiently

feature:
✔ Wind turbine mppt boost charging function
✔ PWM wind load shedding, external shedding resistor, smart solar decoupling
✔LCD displays wind energy, solar energy, load voltage, current and other parameters. Some parameters can be set by the user.

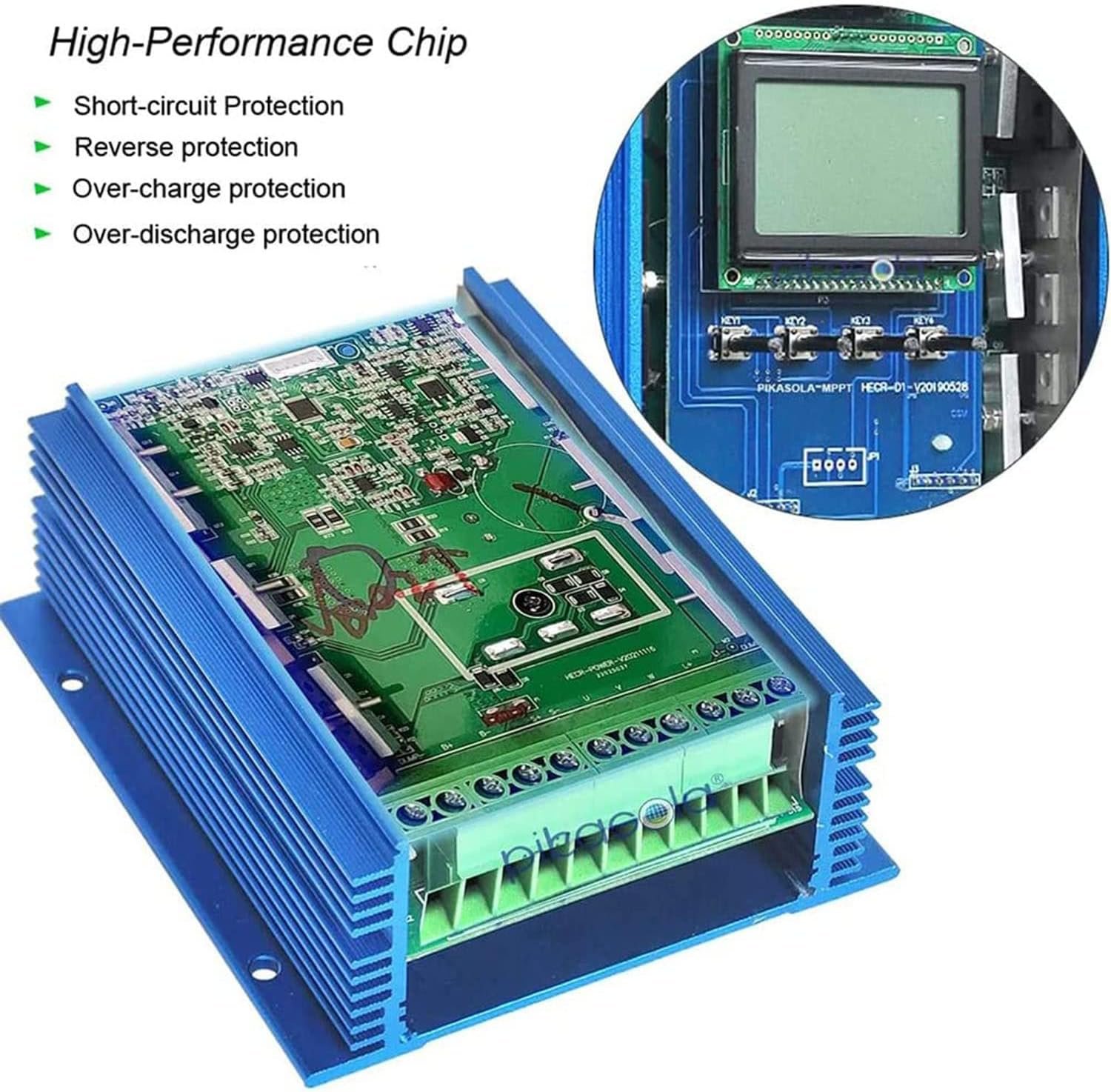

✔ The internal circuit board of the controller is sprayed with conformal anti-paint to prevent dust, moisture and static electricity.
✔ Intelligent design, precise structure, powerful functions, stable performance, safe and reliable products.
✔ Choose MPPT wind turbine charging method, the charging efficiency is much better than ordinary PWM.
✔ Boost charging function solves the problem of low wind speed charging efficiency (optional).
✔ Professional digital intelligent control.

Specification:
Project type: Wind and solar hybrid charging controller
Rated system voltage: 12V, 24V, 48V
The above three parameters:
(Wind power rated power + photovoltaic rated power)/system voltage ≤ 40a
Wind rated power/system rated voltage≤25a
Photovoltaic rated power/system rated power≤25a
No-load current (DC): ≤0.05A
Controller power supply mode: battery or photovoltaic panel
Display parameters: voltage, battery level, current, power, charging mode, temperature, etc.
Protection types: solar battery reverse connection protection, battery open circuit protection, battery reverse connection protection, overcurrent and overvoltage soft automatic braking protection, overload protection, etc.
Heat dissipation method: aluminum profile heat dissipation and self-cooling
Working temperature and humidity range: – 20~+55℃/35~85%Rh (no condensation)

packing list:
1 x Wind and Solar Hybrid Controller
【Operating System】: The wind turbine charging part adopts booster MPPT technology, which makes it charge continuously and efficiently, even in low wind speeds. Stepless discharge function including external dump-load resistor. Solar panel charging uses PWM technology through MOS tube in series.

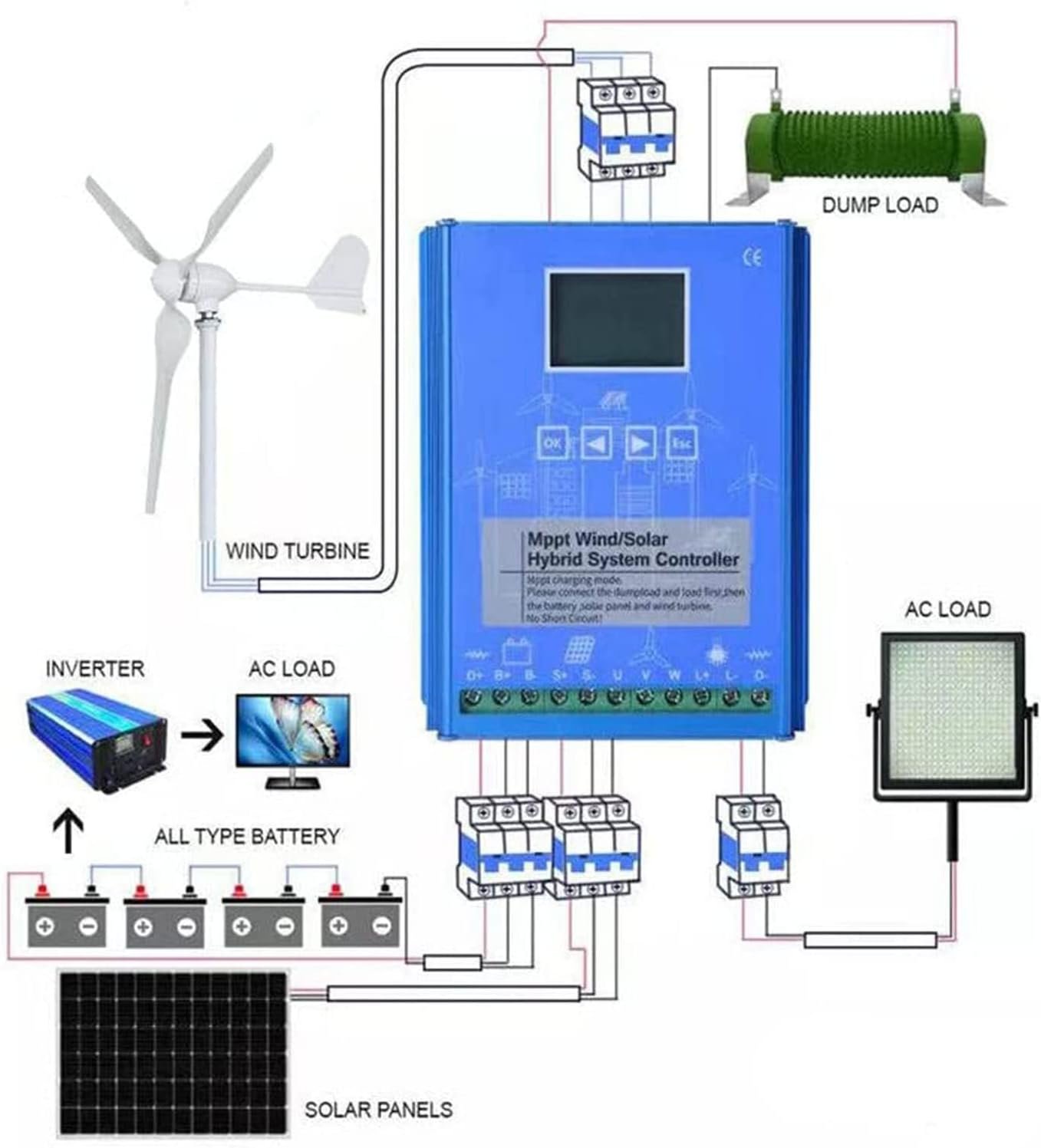

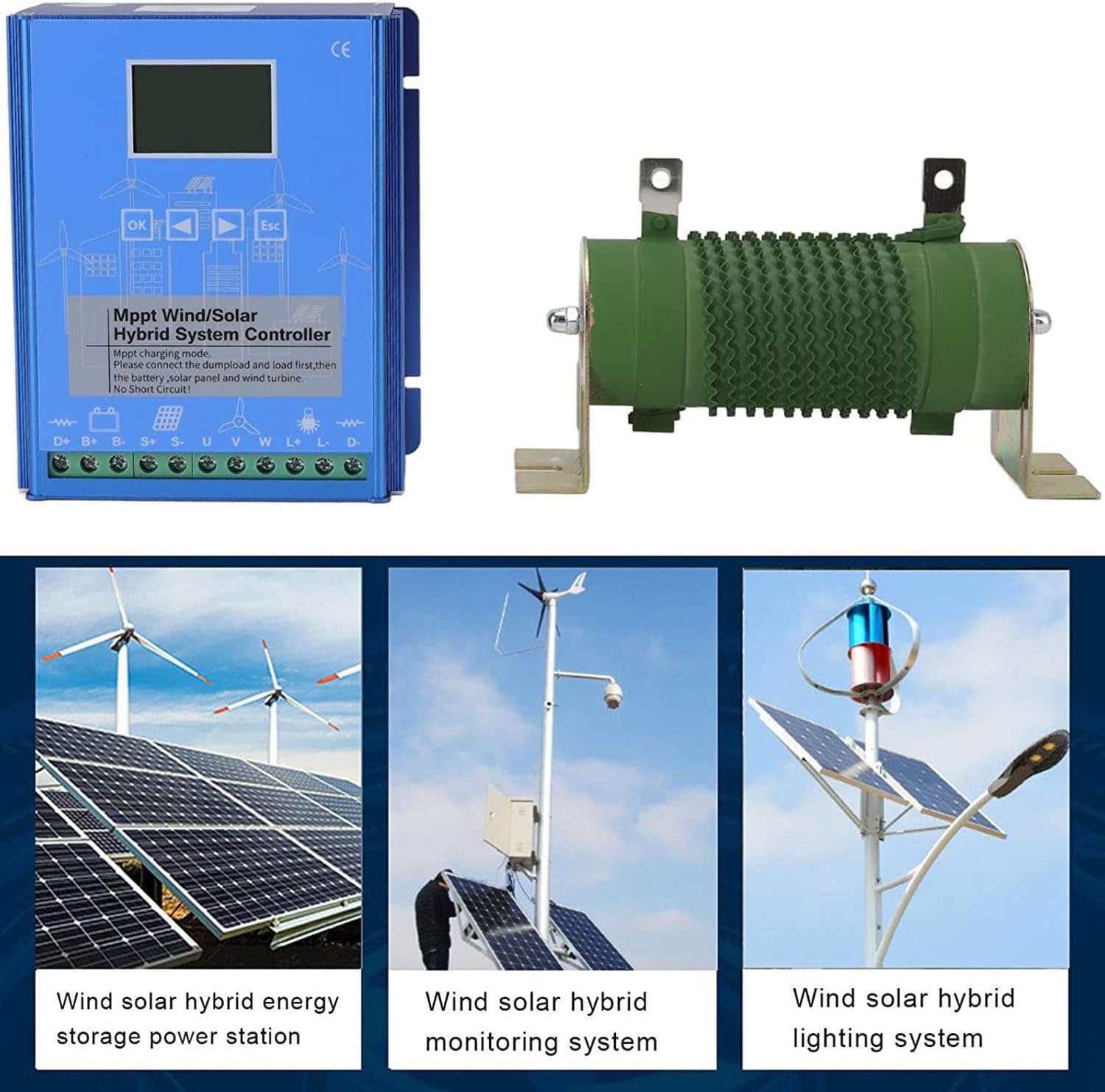

【Scope of application】: This hybrid charge controller fits all 12V 24V 48V batteries, including lithium battery. Suitable for wind generator and solar panels for wind-solar complementary system for home, boat, street light.
【Display & DC Charge Mode】: Larger LCD screen, easy to browse and handle. Two DC loads (output) with 4 output modes and each can be set different models.
【Protection function】: reverse charging, protection from sunlight, overcharge voltage/under voltage and overload protection, battery reversal and open circuit protection, protection, etc. Independent boost circuit solves the charging efficiency of the low power vertical wind generator.
【Intelligent and Stable System】: The parameter is set perfectly after choosing the battery type. User can also customize according to their own needs. This system has been upgraded more intelligently to control the charging voltage absolutely stably.
