Price: £168.50 - £139.00
(as of Nov 02, 2024 13:48:36 UTC – Details)

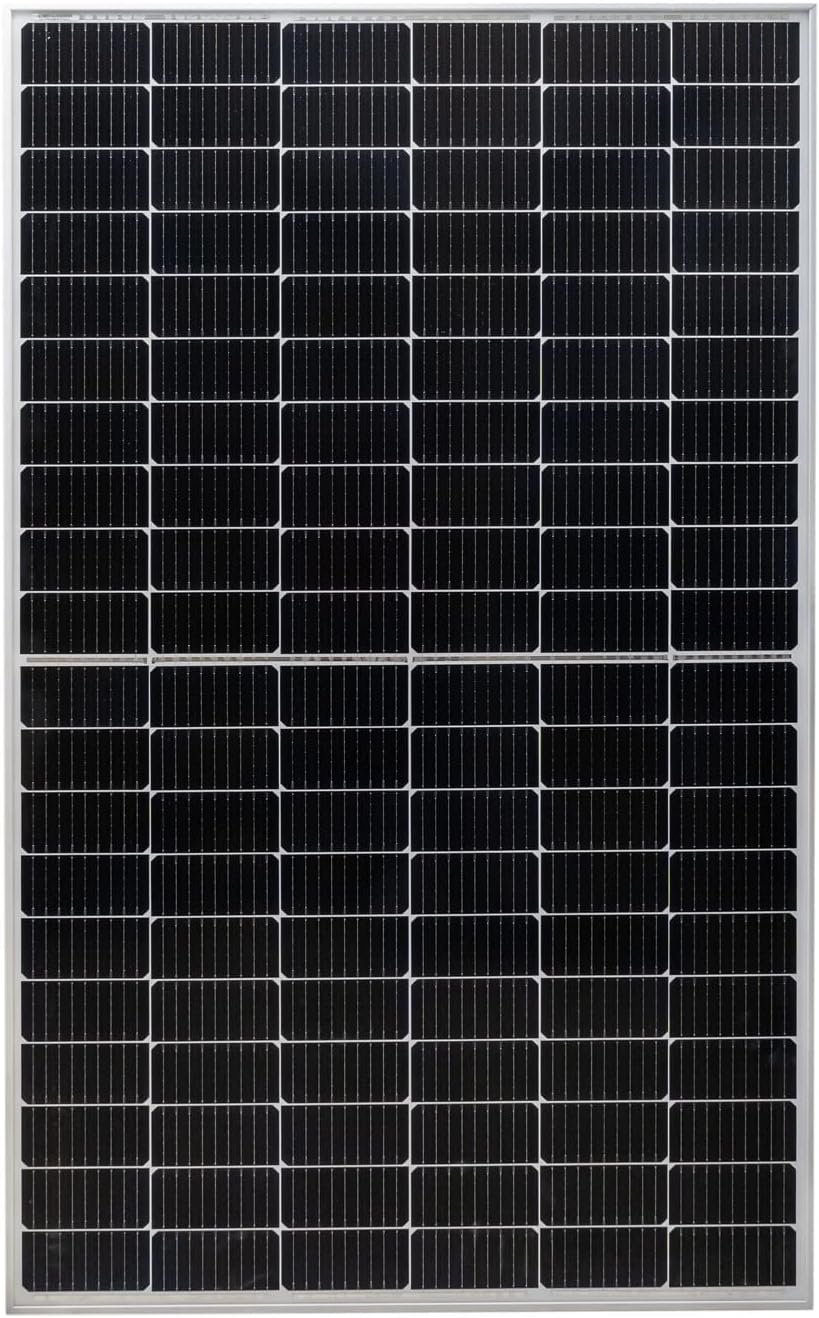

Voltacon Solar PV. 405W Monocrystalline. Half Cut 108 Cells.
Voltacon Solar Panels PV’s 405W solar module’s ingenious design creates a more durable, higher efficiency, and overall greater power production in comparison to many other solar modules/panels. The product has excellent performance properties in terms of the occlusion loss/temperature coefficient.
Excellent temperature performance
The temperature of HC module is 1.6 °C lower than that of the conventional
module under the same working condition, which results less power loss.
Reduced encapsulation loss due to reduced current
HC module is of lower current and lower CTM loss at around 0.2%, while
the CTM loss of conventional module is 1%.
The new frames are made of anodised alluminium with anti-corrossive properties. The frame thickness is 30mm, please notice that when you buy mounting clamps for your panels.
When the cells are cut into thirds, the current becomes one third of what it was, which enables less internal loss. Series-parallel wiring improves power performance. The working temperature of module and junction box are lower than that of conventional types, which effectively reduces the hot spot risk
Applications: commercial and residential roof tops, off-grid, grid-tie, small solar installations including campervans and boats
WHAT ARE THE BENEFITS OF HALF-CELL PANELS FROM ET-SOLAR
HIGH VOLTAGE
Up to 1500V system voltage
HIGH EFFICIENCY
Higher module conversion efficiency benefit from half cell structure (low resistance characteristic).
PID RESISTANCE
Excellent Anti-PID performance guarantee limited power degradation for mass production.
LOW LIGHT PERFORMANCE
Advanced glass and cell surface textured design
405W Power and Positive Tolerance 3%
Compact Size: 1754x1096x30mm
25 Year Linear Performance Warranty
High efficiency solar cells 22%
MCS certified product
Voc: 41.40. Vmp: 34.40V
Isc: 12.34A. Imp: 11.77A
300mm Extension Cable includes on each side of the panel
