Price: £139.90
(as of Nov 05, 2024 06:35:37 UTC – Details)

Product Description

Description:

The 200w solar kit is affordable. Including controller, cable, connector, brackets, it is convenience and perfect to provide free electricity to charge a 12V battery that can power hundreds of devices and electrical appliances.

The high efficient monocrystalline silicon solar cells and the tough, sealed, aluminium frame will give you years and years of consistent, free power. Waterproof design ensures the solar panel can be used in all weather conditions.

Each solar panel has been thoroughly tested at the factory for highest quality standards.

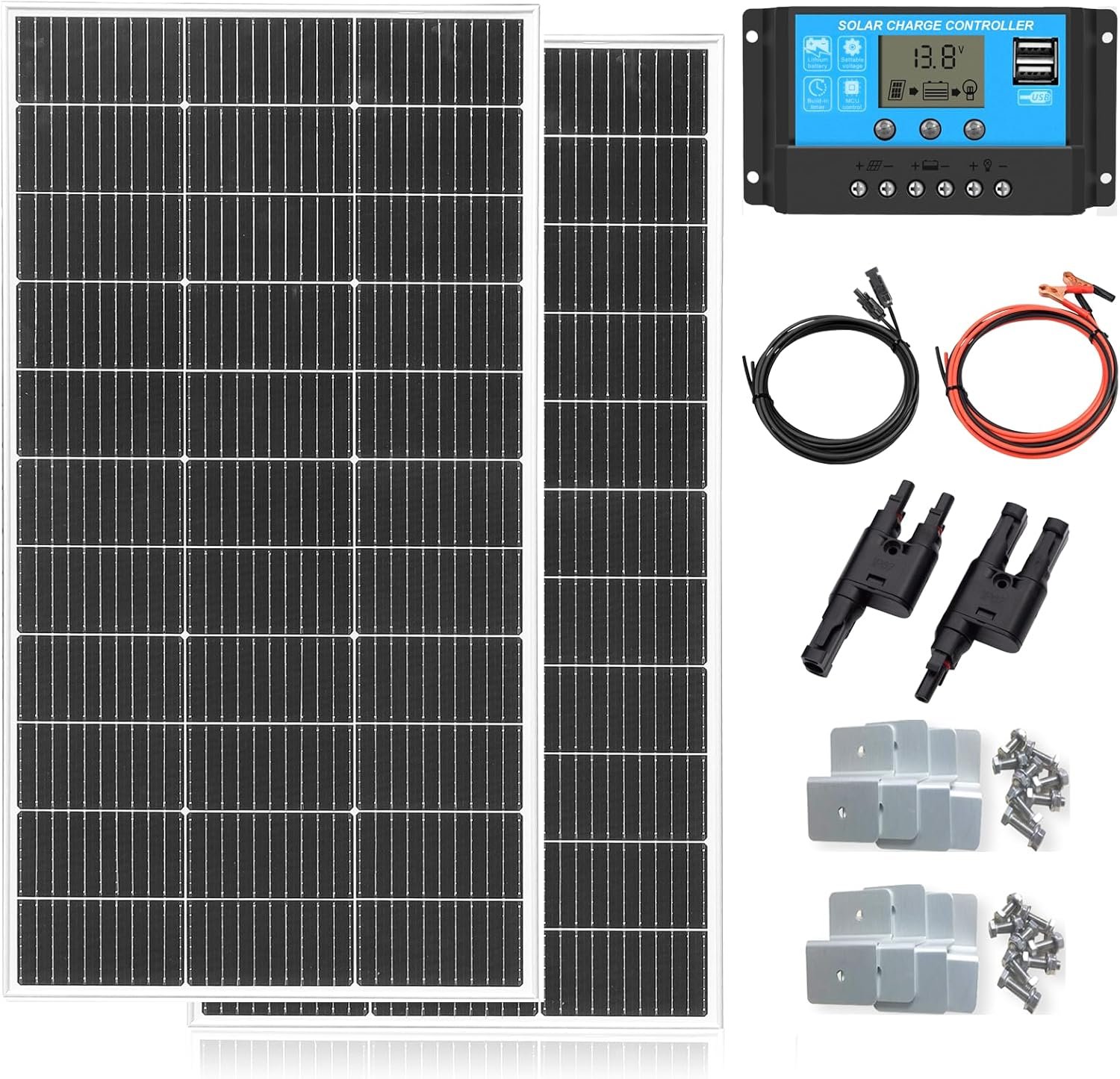

Packing list:

1. 2 x 100W solar panels

2. 1 x 12V / 24V 20A solar charge controller

3. 1 x 3 m extension cable with PV male and female connectors (2.5mm2)

5. 1 x 3 m extension cable with alligator clip (2.5mm2)

6. 8 x mounting brackets Z

7. 1 Pair 2 in 1 connector

2. 20A USB Solar Controller

Voltage: DC 12V / 24V

Rated charging current: 20A

Overload protection: 14.4 V / 28.8 V

Charge Overload: 13.7 V / 27.4 V

Charge recovers voltage: 12.6 V / 25.2 V

Excessive discharge protection: 10.7 V / 21.4 V

USB output: 5V / 3A

Dimensions: 150 * 78 * 35mm / 5.9 * 3 * 1.4 inches

Specification

1. Solar Panel

Meterial: monocrystalline silicon

Maximum power (Pmax): 100W

Maximum supply voltage (Vmp): 18V

Open circuit voltage: 21.6 V

Maximum supply current (Imp): 5.55A

Short circuit Current: 6.06 A

Dimensions: 1160 * 530 * 25mm

Weigh: 6.5kg

Max System Voltage : 1000V DC(IEC)/600V DC (UL)

Temperature range: -40 Degree to 80 Degree

Tempered glass of 3.2mm is a strong, durable, anti-reflective, high-transparency, low-iron glass with improved stiffness and impact resistance. It supports wind and snow loads, winds (2400Pa) and snow loads (5400Pa). Has a good performance in low light.

Aluminum frame resistant to corrosion and shock. Make the solar panel more durable. The shelf life is 25 years.

Adopting advanced 182*185mm battery cells, the conversion efficiency can reach 23%, and the solar panel area is smaller to achieve 105w power output.

Photovotaic 90 cm (35.4 inch) cable with connector.

The IP 67 rated 65 * 65 * 20mm junction box provides complete protection from environmental particles and low pressure water jets.

Application

Installation in caravans and boats for continuous power supply when away from home

Charging batteries and mobile phones

Can be installed as a balcony solar system to power a home

【High Conversion Efficiency】The 200w solar panel kit with high efficiency monocrystalline silicon solar cells, the power generation efficiency is 1.2 times higher than traditional.

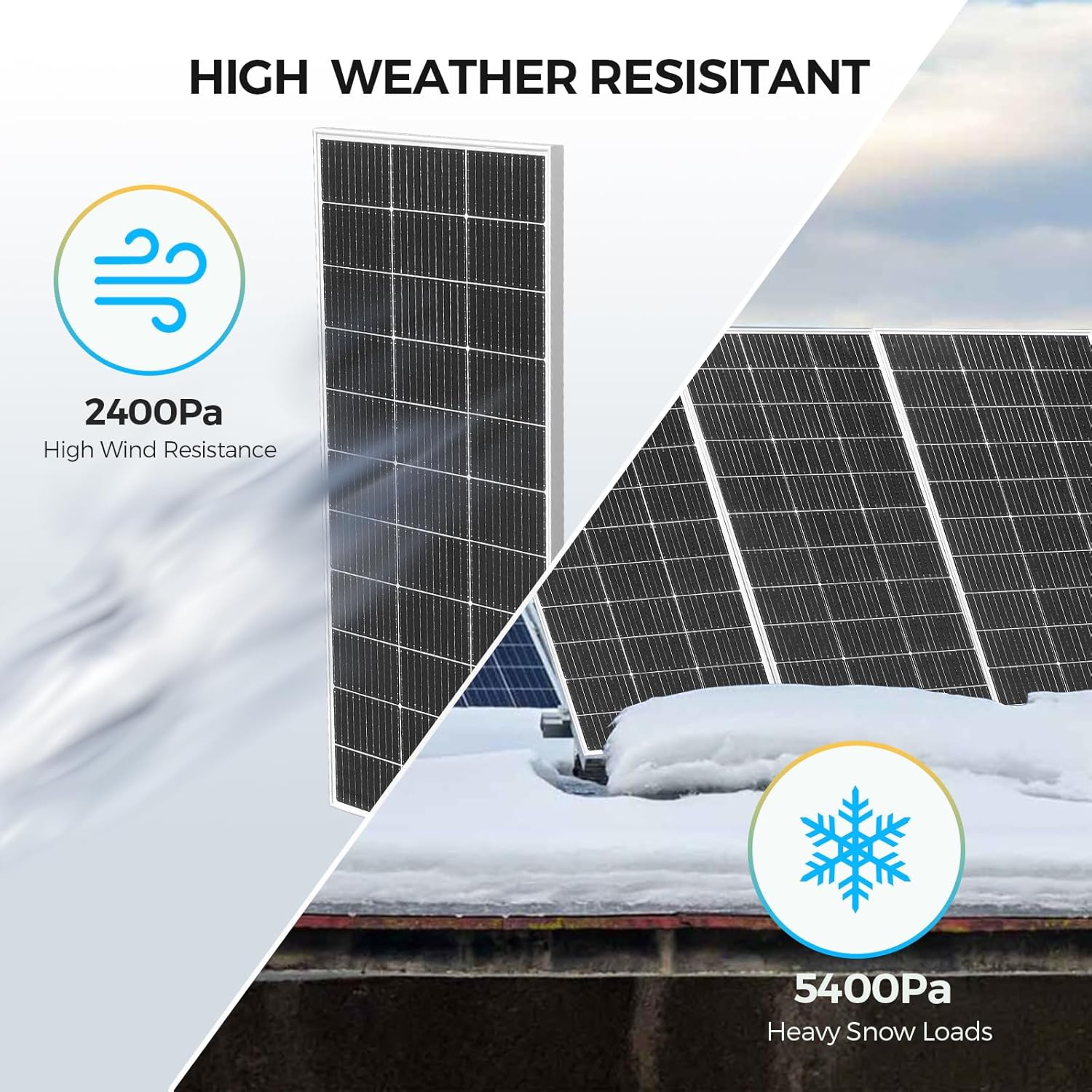

【Durable】Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades as well as withstand high winds (2400Pa) and snow loads (5400Pa) .
【Safety and Stable】By-pass diodes are pre-installed in waterproof IP-67 rated juncton box to minimize power drop caused by shade and ensure excellent performance in low-light environments.
【Wide Application】Basic component for off-grid applications, such as RVs, trailers, boats, sheds, and cabins. Easy to install with Z brackets and pre-drilled holes on the back of panel for fast mounting and securing.
【Long Use Life】Advanced encapsulation material with multilayered sheet laminations to enhance cell performance and provide a long service life. 25-year transferable power output warranty; 5-year material and workmanship warranty.
