Price: £139.90
(as of Oct 10, 2025 17:31:41 UTC – Details)

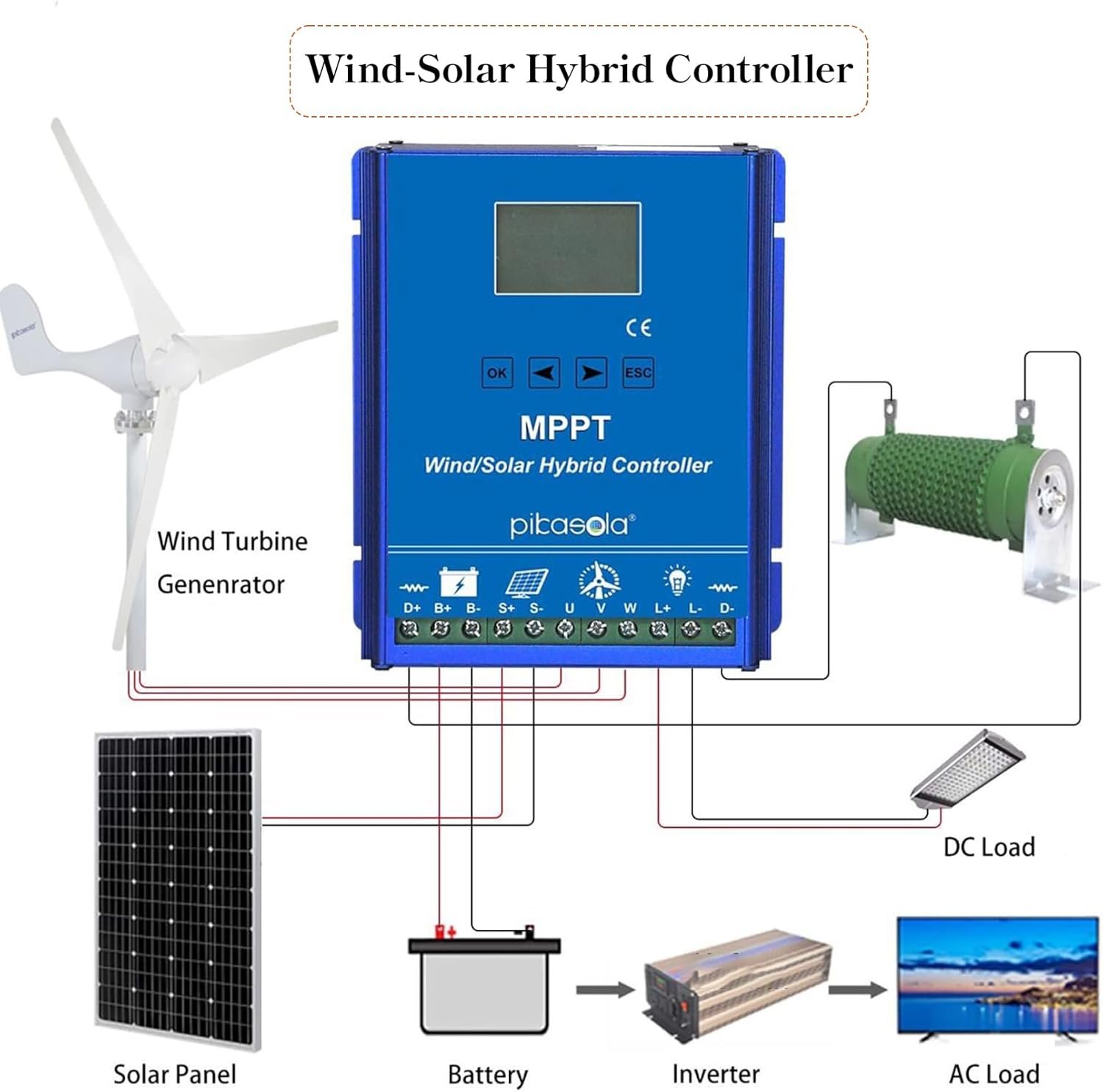

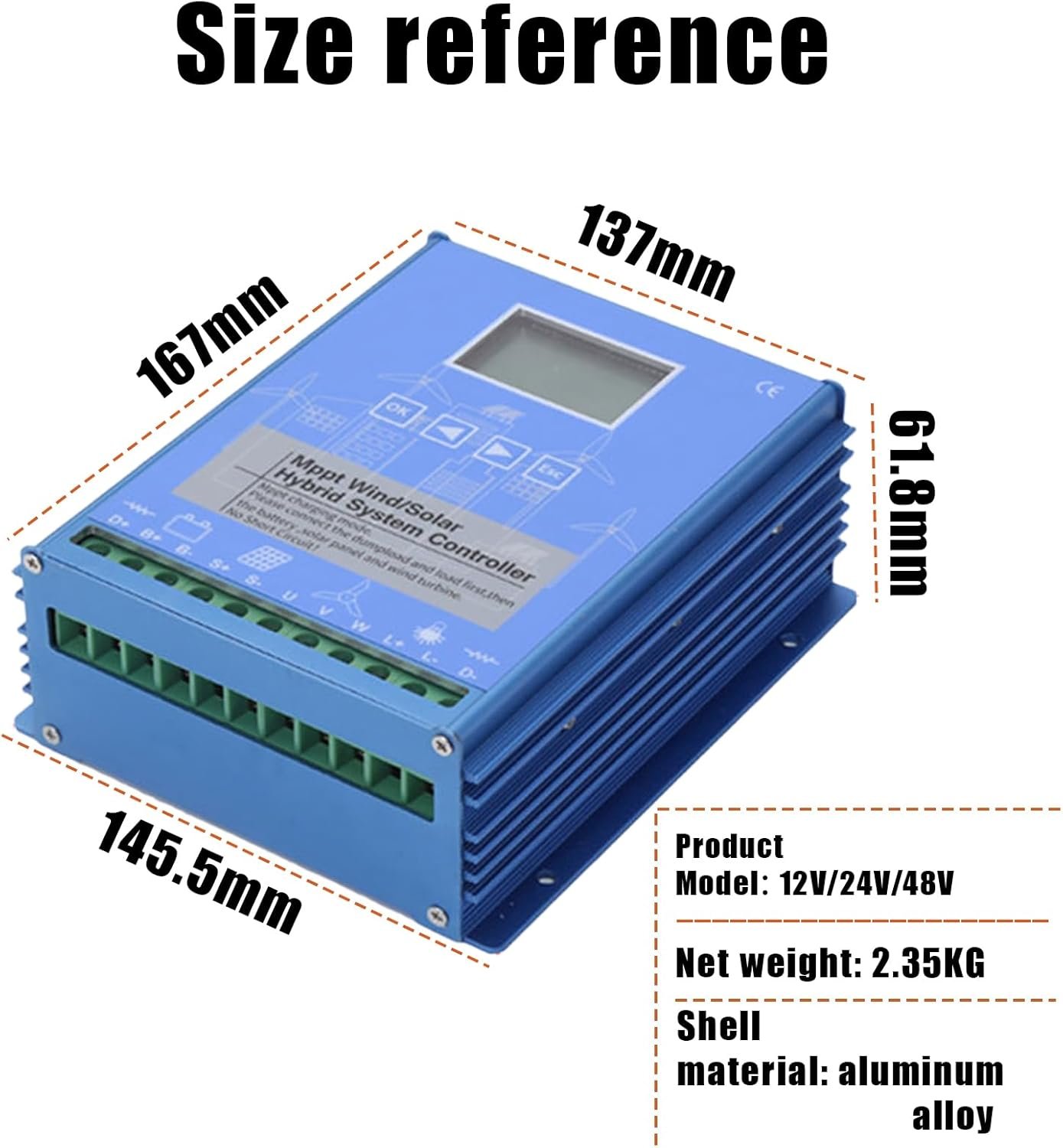

▶▶This type of wind solar hybrid street light controller is a special design for small off-grid devices, where wind generators and solar panels charge batteries safely and efficiently. ▶▶MPPT boost charging function of the wind generator. ▶▶The display adopts LCD design, displaying more comprehensive information, clearer display interface, button interface, easier and setting. ▶▶LCD displays parameters such as voltage and current of wind, sun and load. Some parameters can be set by the user. ▶▶Dual power supply function: battery + solar power supply. ▶▶Selection of multiple working modes: pure light control mode, normal open mode, light control + time control mode (four periods + morning light) ▶Specification： ●System rated voltage: 12V/24V/48V ☆The above three parameters must meet the conditions： ●(Wind power rating + photovoltaic rating) / System voltage ≤ 40A. ●Wind power rating/system rating voltage ≤25A ●Photovoltaic rating/system rating ≤25A ●No-load current (DC): ≤0.05A ●Controller power supply mode: battery or photovoltaic panel ●Product size：167×145.5×61.8mm/6.57×5.73×2.43in ●Package size：360×250×120mm ▶Products include: 1*Wind and solar hybrid controller 1* external discharge resistor 2* connection cable 1*User manual ▶Friendly reminder: Working temperature and humidity range: – 20~+55℃/35~85% RH (no condensation)
1.Wide Application: Universal for multi type battery, can lock voltage, complete protection functions, adjustable output mode, suitable for wind solar hybrid energy storage power station, wind solar hybrid monitoring system, wind solar hybrid lighting system.

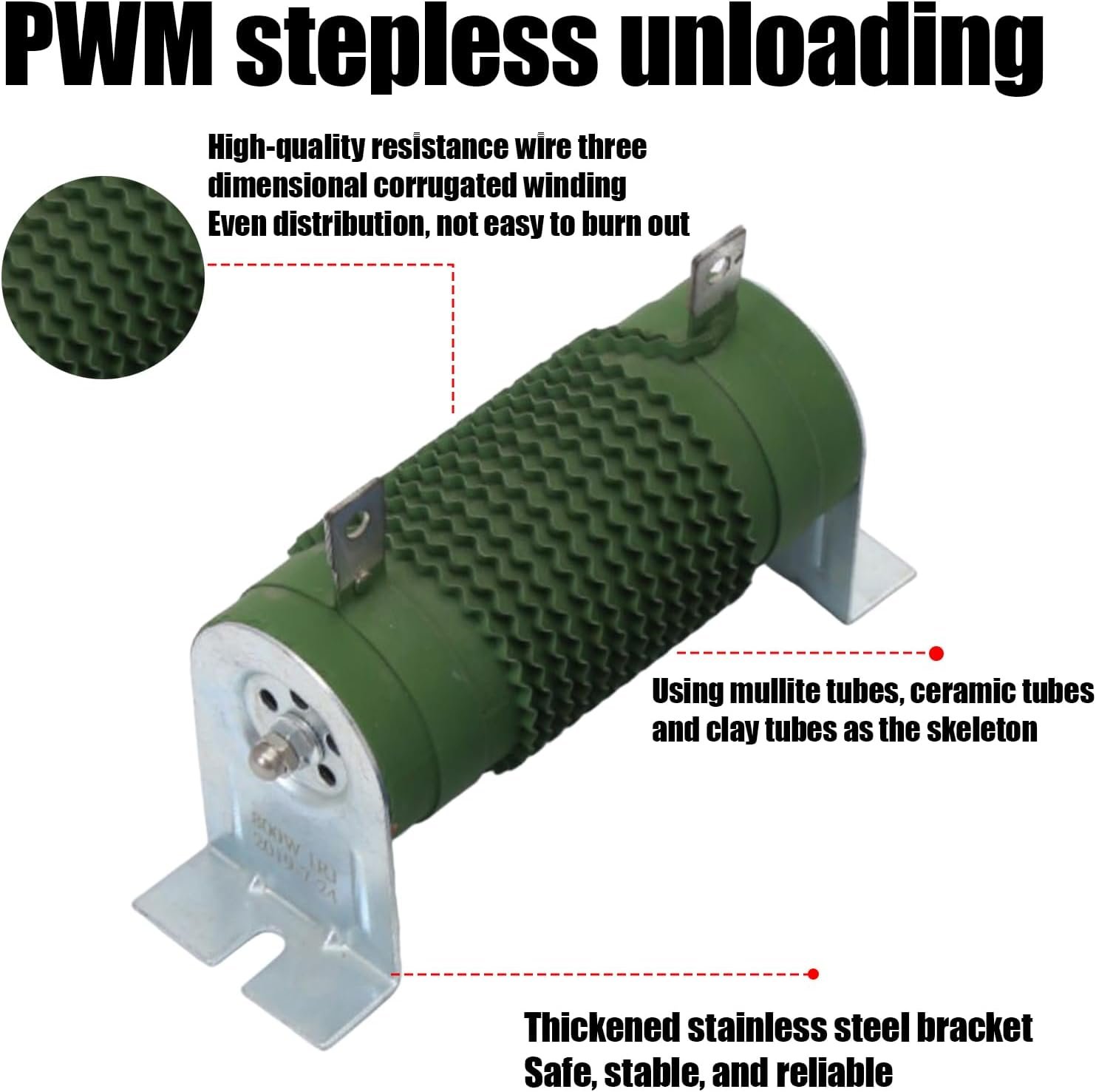

2.Operational system:The wind turbine charging part adopts booster MPPT technology, which make it charge continuous and efficiently even in low wind speed. Stepless unloading function including an external dump-load resistance. Solar panel charging use PWM technology by MOS tube in series.
3.Intelligent&stable system:The parameter will be set prefect auto after choose battery type. User also can adjust by own requirement. This system has been updated into more intelligent to can control charge voltage stable absolutely.
4.Display&DC Load mode: Bigger LCD screen which easy to browse and handle. Two DC Load (output) with 4 output modes and each one can be set different model.
5.Protection function: Reversed charging Protection of solar, over charge voltage/under voltage & Over load voltage Protection, battery reverse connects and open circuit protection, Lightning Protection, etc.
