Price: £463.99
(as of Oct 11, 2025 13:43:13 UTC – Details)

Say goodbye to power anxiety!

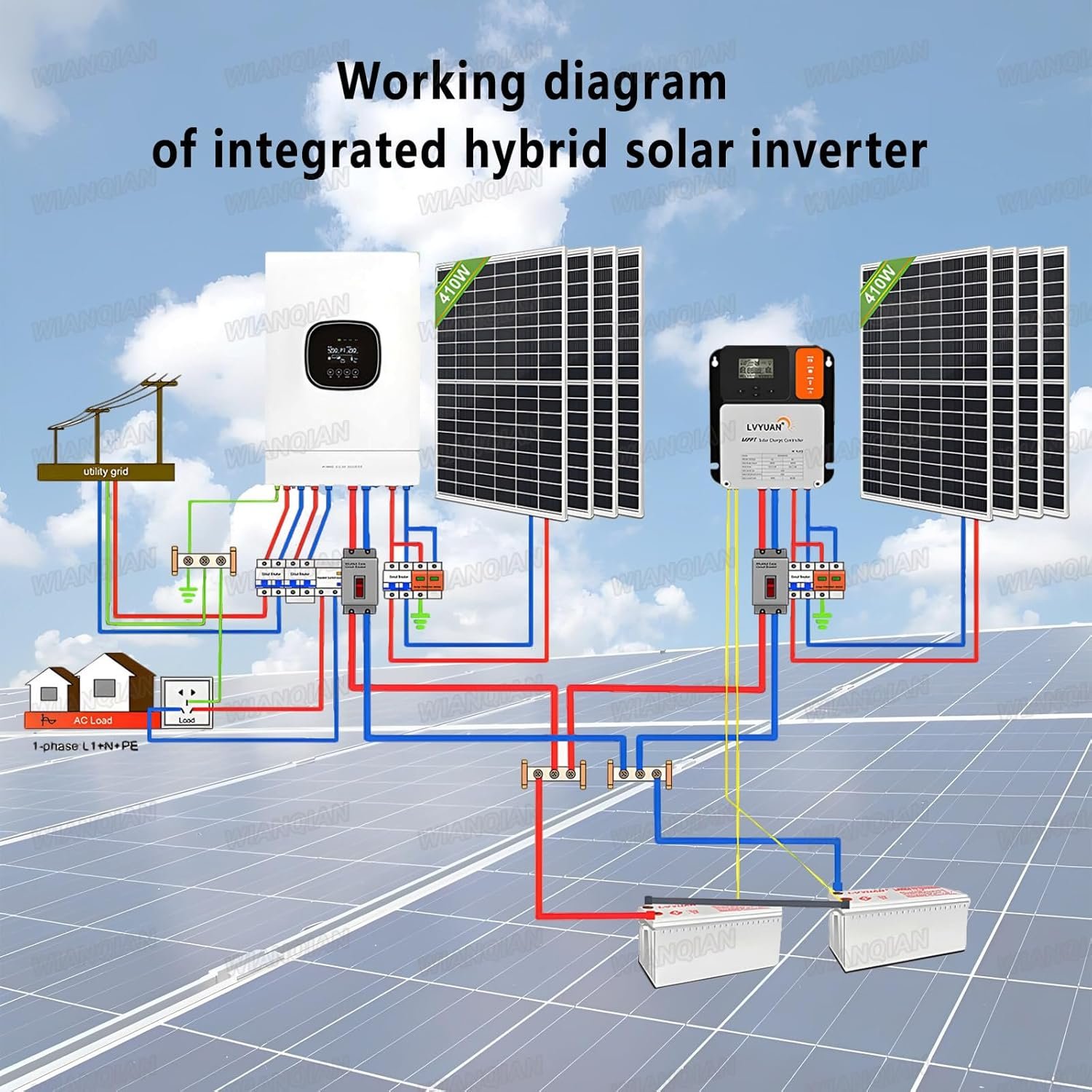

This hybrid solar inverter combines photovoltaics, mains power, and energy storage. It intelligently switches between on-grid and off-grid, and uses WiFi to monitor every kilowatt-hour of power.

▶【Specifications】
✔Product:
– Rated Output Power: 5000W
– Max.Peak Power: 7500W(<200ms)
– Rated Output Voltage: 230VAC
– Load Capacity of Motors: 4HP
– Rated AC Frequency: 50Hz/60Hz
– Waveform: Pure Sine Wave
– Switch Time: 10ms(typical)

✔Battery：
– Battery Type: Li-ion / Lead-Acid / User Defined
– Rated Battery Voltage: 48V
– Voltage Range: 40V-60V
– Max.MPPT Charging Current: 80A
– Max.Mains/Generator Charging Current: 80A
– Max.Hybrid Charging Current: 80A

✔PV Input:
– Number of MPPT Trackers: 1
– Max.PV Array Power: 6000W
– Max.Input Current: 21.8A
– Max.Voltage of Open Circuit: 500Vdc
– MPPT Voltage Range: 120-450Vdc

✔Mains/Generator Input:
– Input Voltage Range: 90-280Vac
– Frequency Range: 50Hz/60Hz
– Bypass Overload: Current 40A

✔Efficiency:
– MPPT Tracking Efficiency: 99.5%
– Max. Inverter Efficiency: 92%

✔General:
– Dimension: 470*343*100mm
– Weight: 9.5kg
– Protection Degree: IP21,only indoor
– Operating Temperature Range: -10℃ ~50℃
– Safety Class: Class I
– Max Parallel: 9

✔Communication:
– Interface: RS485/CAN/Dry Contact
– External Modules(Optional): Wi-Fi / GPRS

▶【Packaging list】

– All-in-One Hybrid Inverter x 1
– User manual(English) x 1
– Parallel Communication Cable(DB9 1.5m) x 1
– Expansion Screw(M6*50,SUS304) x 2
– Tubular Terminal(E4010) x 5
– Tubular Terminal(E6010) x 3
– Jumper cap x 1

⚠ Safety Notice: Professional installation by a licensed electrician is mandatory to ensure compliance and safe operation.

▶︎ If you have any questions, you can send us an email and we will reply within 24 hours.
【All-in-One Hybrid Inverter】 This solar hybrid inverter integrates a 48V MPPT solar charge controller, a 7500W high-frequency pure sine wave inverter, and UPS functionality. It supports simultaneous photovoltaic (PV) and utility power, and can operates with or without batteries. Its 99.5% MPPT tracking efficiency and 92% inverter efficiency ensure maximum energy conversion under varying sunlight conditions, making it easily suitable for off-grid backup and daily home use.
【Flexible Parallel Expansion】 An ideal core for medium to large energy systems, this off grid solar power inverter supports parallel connection of up to 9 units, with power ranging from 5kW to 45kW, and is suitable for single-phase and three-phase applications. Independent MPPT inputs allow simultaneous connection to PV panels in different orientations or in partial shade, ensuring efficient utilization of every ray of sunlight.
【WiFi Module】 Equipped with an industrial-grade WiFi module, users can monitor device status in real time, remotely adjust parameters, and receive fault alerts via a mobile app or web portal. The system supports over-the-air (OTA) updates for continuous performance optimization. It also provides energy usage charts and reports, helping you accurately analyze efficiency, develop energy-saving strategies, and easily manage your energy future.
【Seamless Off-Grid/On-Grid Switching】 The device supports seamless off-grid and on-grid switching: In off-grid mode, it provides stable power for remote areas, RVs, and outdoor base stations. In on-grid mode, it combines solar and utility power, saving up to 80% on electricity costs (Note: Only utility power is supported; surplus power is not supported). Intelligent management eliminates power outages and provides more flexible and controllable energy use.
【Safe and Reliable Operation】 The device features an IP21 protection rating (indoor use) and an operating temperature range of -10°C to 50°C, making it suitable for a variety of environments. Safety features include 10ms fast switching, 40A bypass overload protection, and Class I safety standards to ensure stable operation. The package includes parallel communication cables, expansion screws, and other accessories for easy installation.
