Price: £16.99
(as of Oct 09, 2025 18:00:46 UTC – Details)

Product Description

Female Port: M-C-4

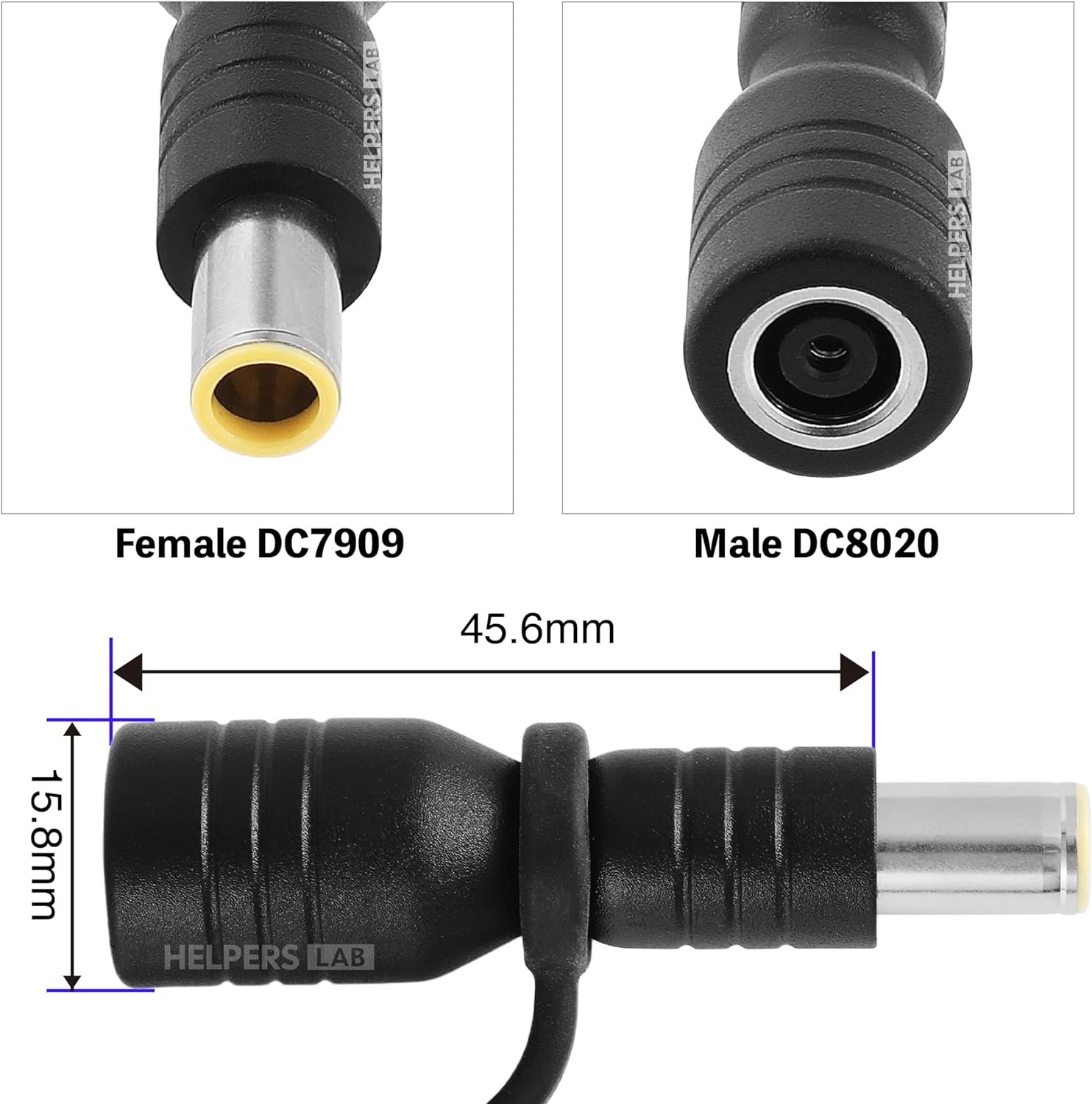

Male Port :DC8020 & DC7909

Electronic Wire Size :14 AWG

Photovoltaic Wire Size :16 AWG

Electronic Wire Type: 1015

Photovoltaic Wire Type :2464

Rated Current: 9.5A

Rated Voltage: 300V

Waterproof Rate: IP68 (after plugged in), IP2X (before plug in)

Conductor Material :Tinned Brass

Dielectric Material PPO

Temperature Rate: -40 ~ 176 ℉

Length : 5.9ft

Add To Basket

Add To Basket

Add To Basket

Add To Basket

Add To Basket

Add To Basket

Customer Reviews

4.7 out of 5 stars 3

5.0 out of 5 stars 1

4.5 out of 5 stars 19

2.4 out of 5 stars 3

—

4.0 out of 5 stars 15

Price

£16.99£16.99 £16.99£16.99 £14.99£14.99 £9.99£9.99 £7.99£7.99 £11.99£11.99

Connector
DC8020 DC8020 DC8020 DC8020 DC8020 no data

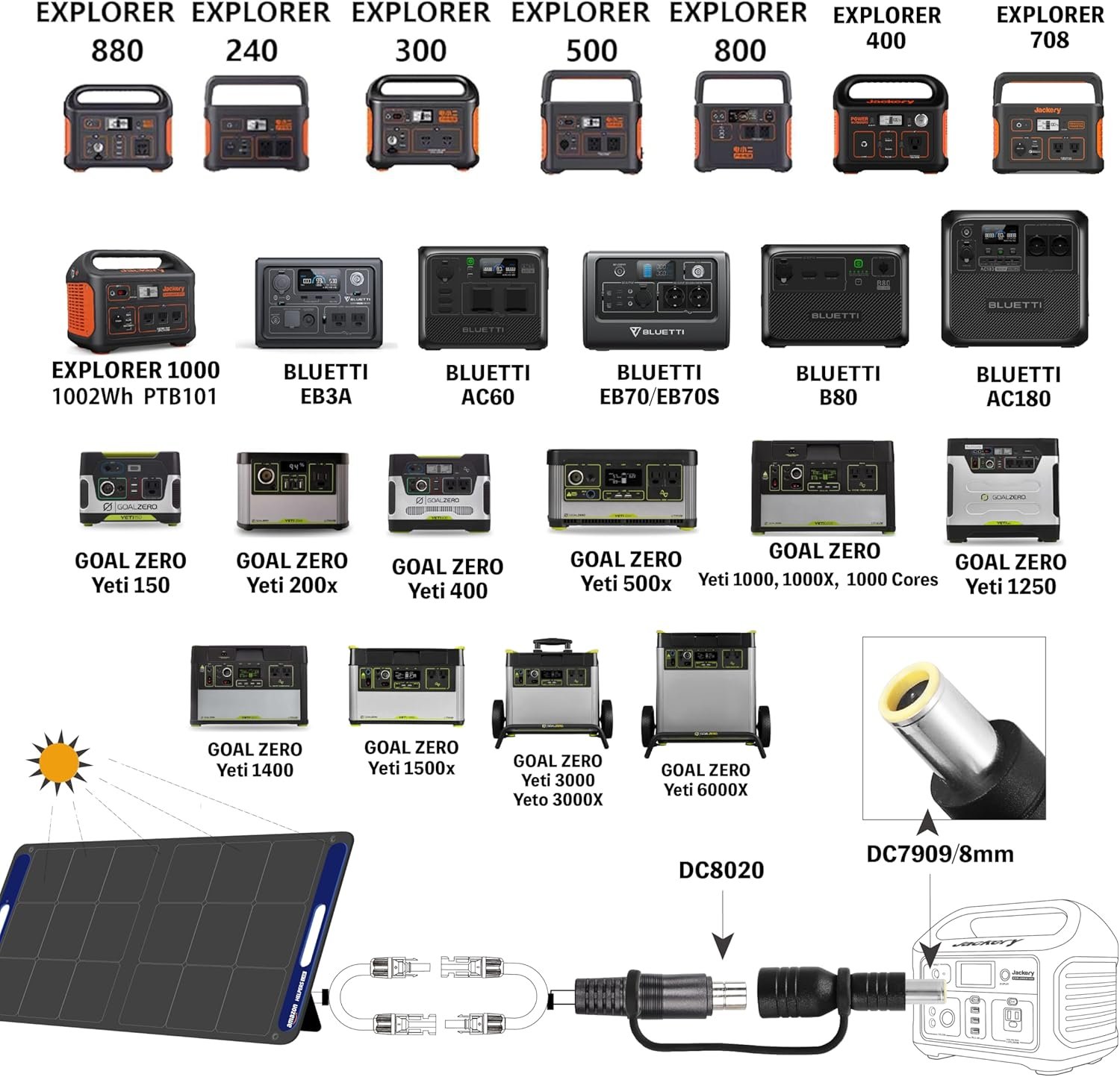

Solar Panel Connector to DC8020 Adapter Extension Cable with DC7909 Adapter for Jackery Portable Explorer Solar Generator 3000 Pro/2000 Plus/2000 V2/1500/1000 V2/1000 Plus/Jackery Explorer 880 Pro/700Plus/600Plus and Jackery Explorer 880/500/240/Jackery 240 ,Jackery 400 ,Jackery 708,Jackery 1000or B80 EB3A EB70 EB70S AC60 AC180 ,and more Power Station Solar Generators. Used it to connect any solar panel which with MC4 to Jackery Solar generator. Worked perfectly!

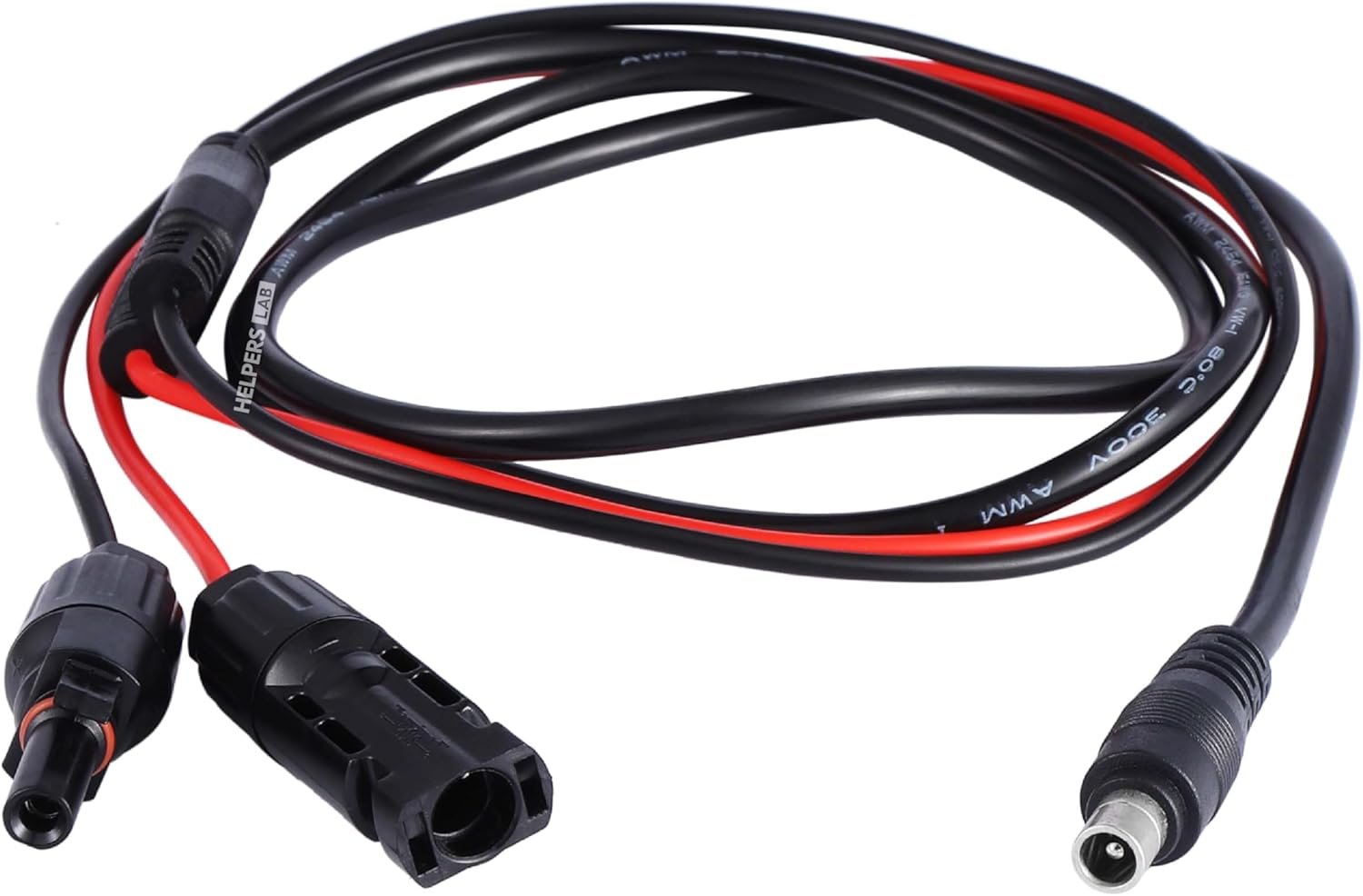

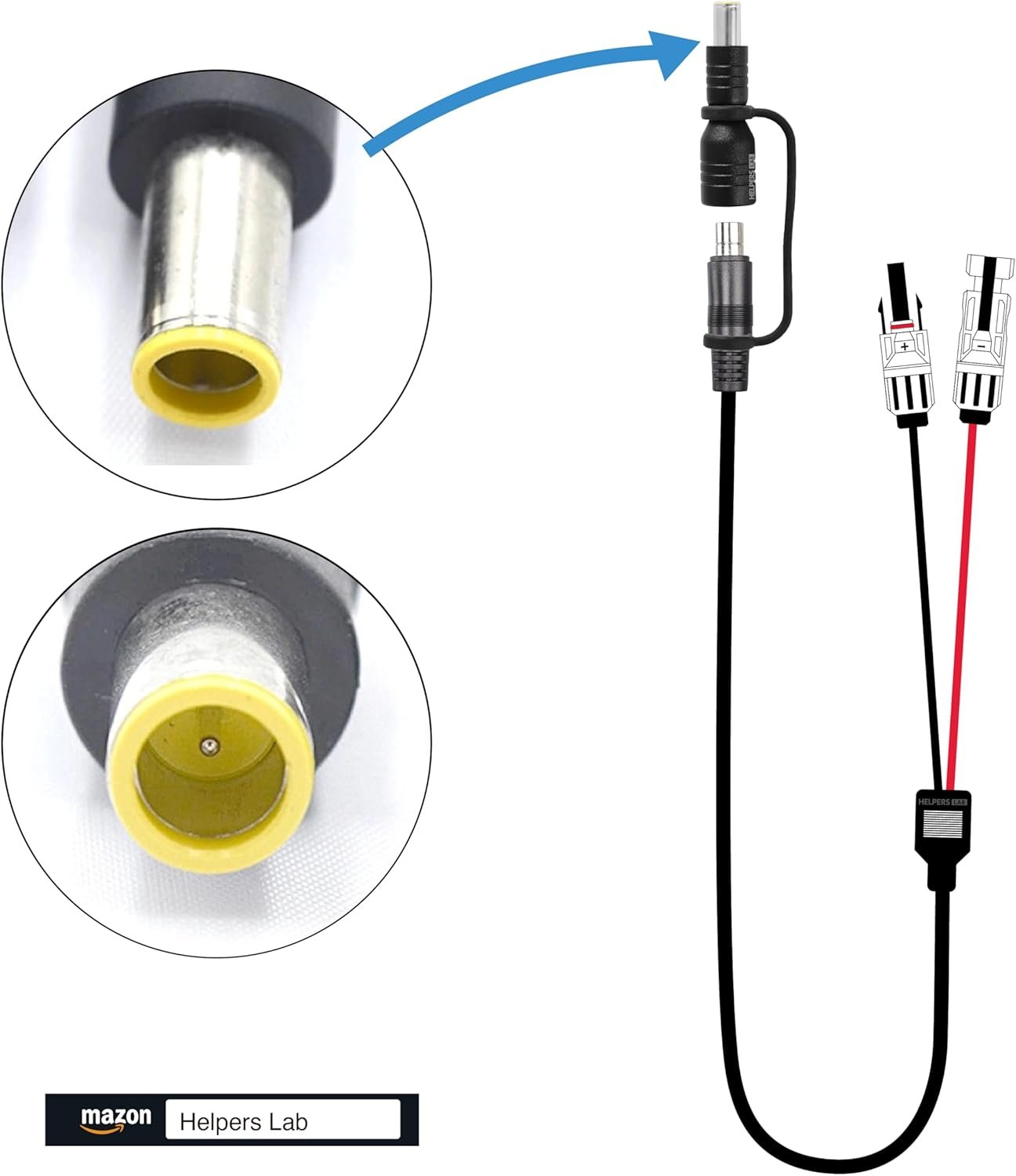

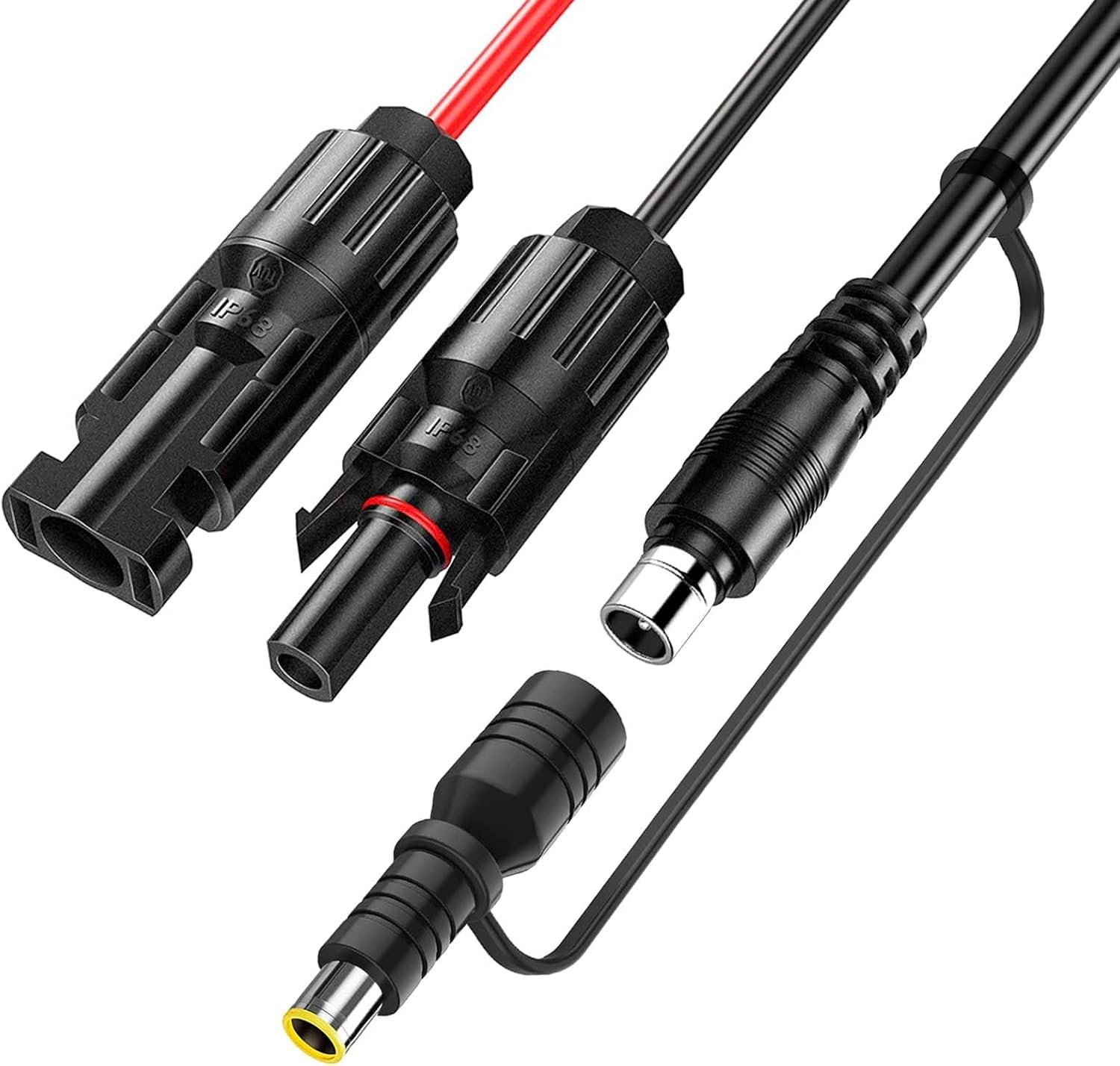

Solar connector to DC8020 and DC7909 adapter cable, compatible with all brands of solar panels with solar connectors,as well as a DC8020 and DC7909 plug compatible with solar charging generators. It is suitable for the connection of photovoltaic cables and peripheral products for DC power.
Waterproof solar male and female cables are specially designed for harsh outdoor environments. Each solar connector is equipped with a waterproof rubber ring, which is weatherproof and ideal for outings.6FT solar to DC extension cable, longer connection distance,It is convenient to connect to the solar panel and adjust the best position when charging.

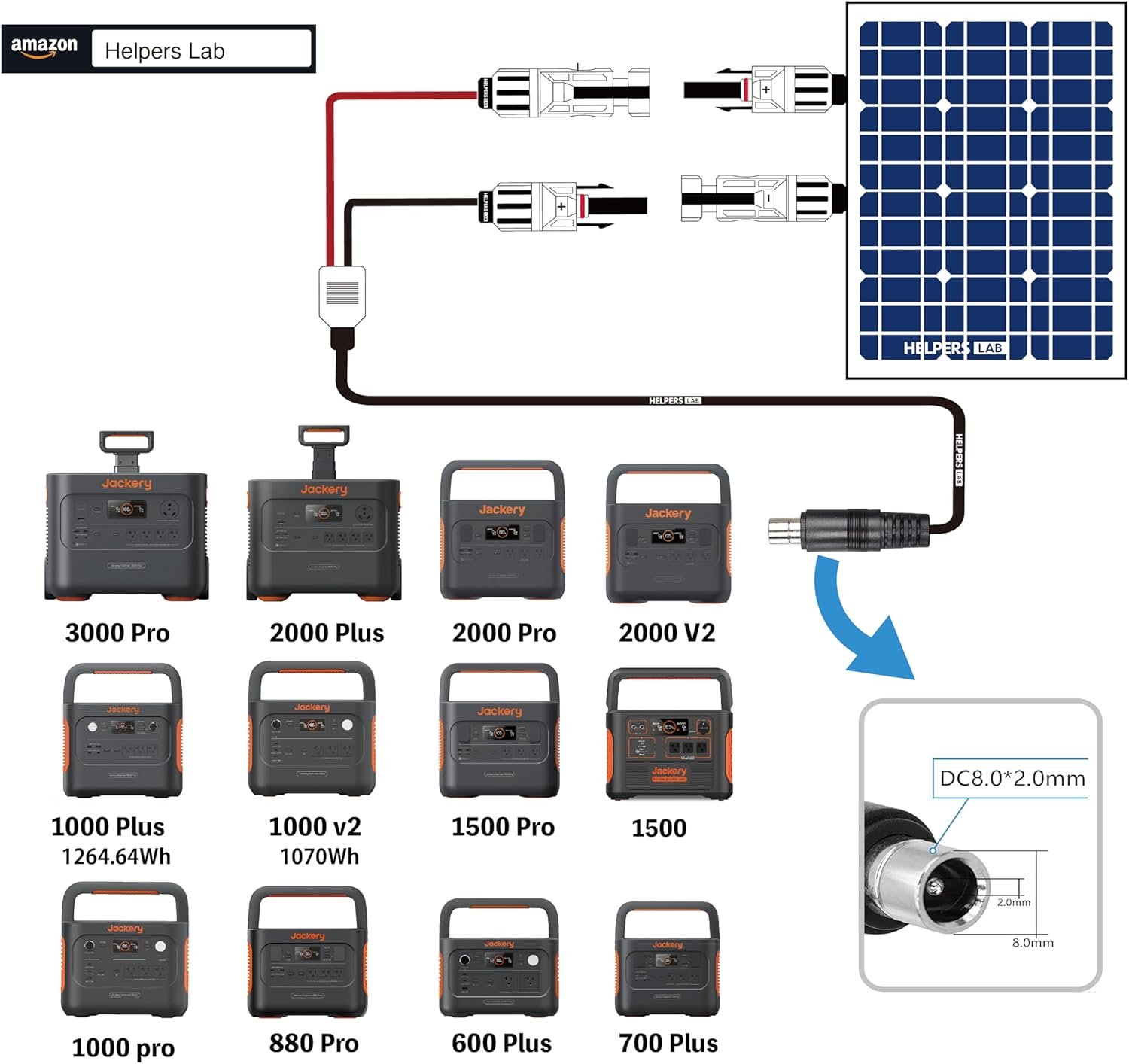

This enables your Jackery to be recharged by any solar panel with MC4 connections, you can buy much cheaper panels than Jackery offer or use ones you already have. Plug and play is so easy.

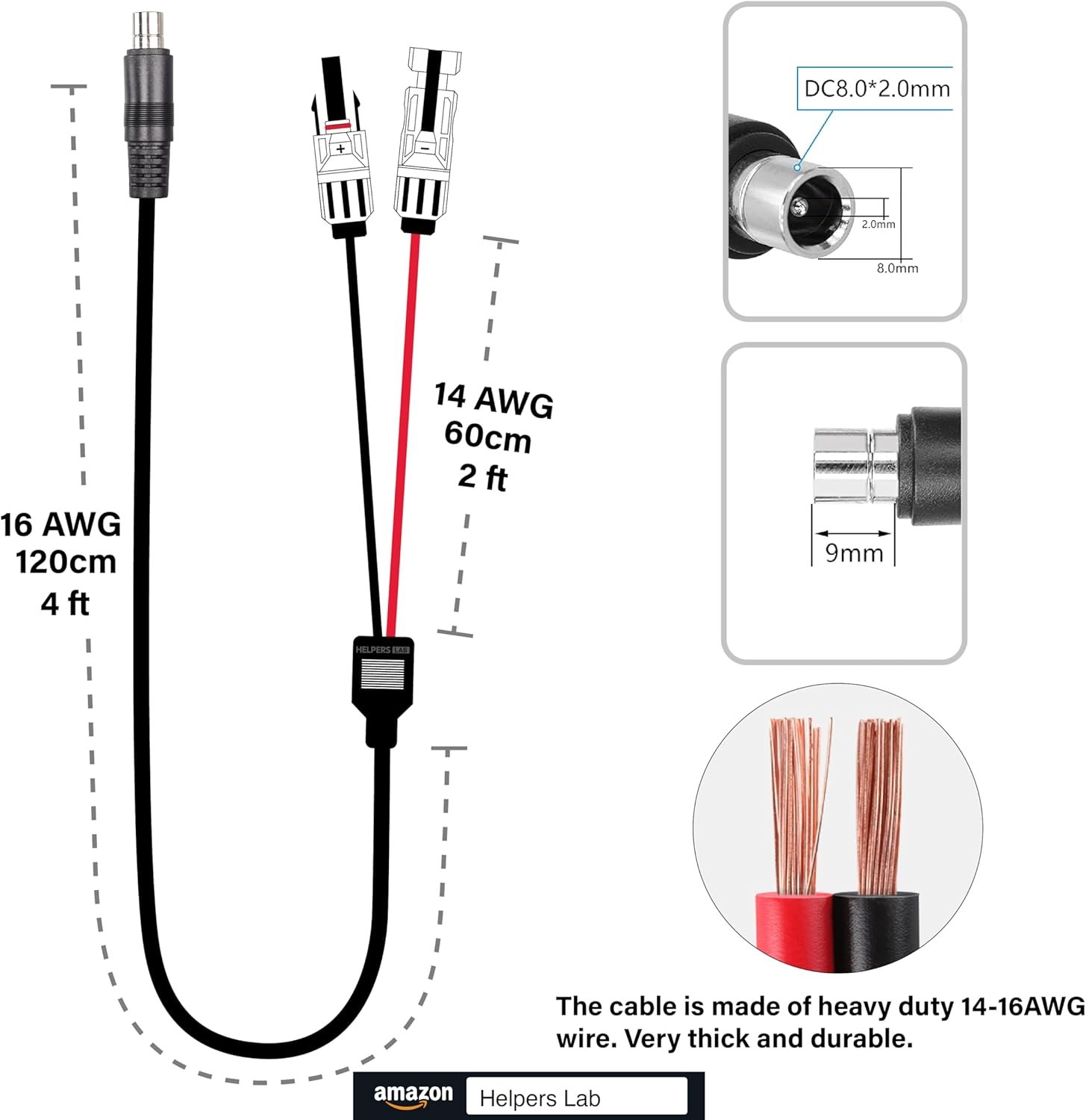

Solar photovoltaic line, the main line is heavy-duty 16AWG copper wire, and the branch line is 14AWG copper wire, which is very durable.(Note: This cable is an output cable and can only be used for load charging. When the solar connector is connected to the solar panel socket connector, make sure that the solar cable will not be immersed in water)

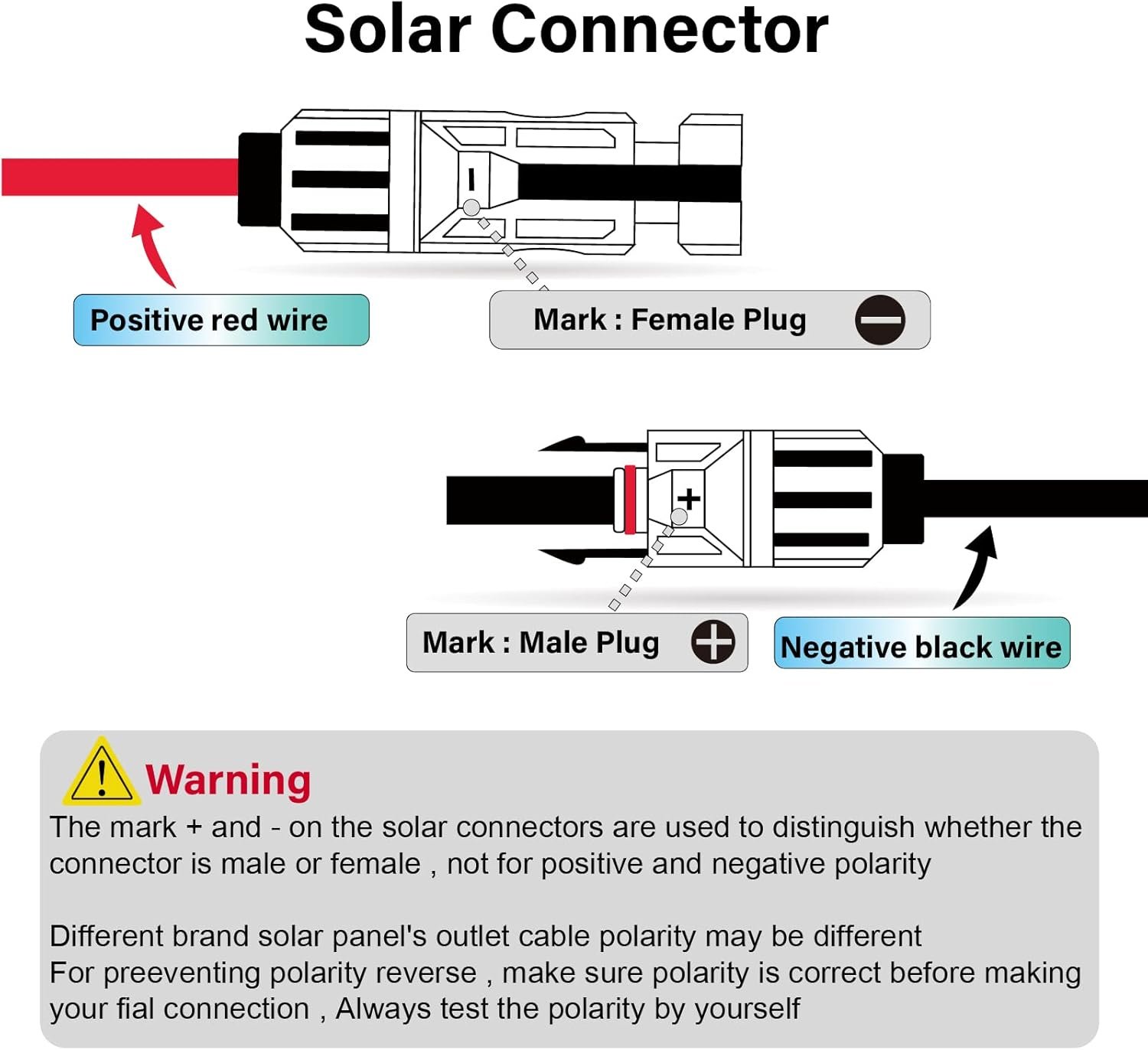

This solar male and female connector to DC cable is designed to connect the male connector to the negative pole and the female connector to the positive pole. In some cases, if you find that the solar panel is not charging the generator, just try to switch the positive and negative solar connectors on the solar panel, change the polarity and start charging.
