Price: £199.00
(as of Oct 13, 2025 06:50:41 UTC – Details)

Specification: 1, Rated System Voltage: 12V/24/48V AUTO 2, Rated Wind Power: 1000W 3,Rated Solar Power: 600W 4,No-Load Current:<0.05A 5,Controller Power Mode: Battery or Solar 6,Maximum imput voltage: 60V 7,DC Output Current: Equal to Battery Voltage 8,Maximum Output Current: 30A 9,Display Content: LCD Display 10,Net Weight:2.2kg
【Operating System】: The wind turbine charging part has booster MPPT technology, which makes it charge continuously and efficiently even at low wind speeds. Stepless discharge function including external dump charging resistor solar panel charging uses PWM technology through MOS tube in series.
【Protection function】Solar reverse charge protection, overcharge voltage/undervoltage and overload voltage protection, battery reverse connection and open circuit protection, protection and other modes. The controller provides multiple output modes (light control, time control, morning light) for various applications
【LED display】Intelligent design, simple structure, powerful control function, stable performance, safe and reliable products. The solar charge controller has a large LCD display, the status and data are clear at a glance, and a complete three-stage PWM charging management. Large size LCD screen and four key operation mode easier and convenient by user.
【Intelligent Stability】After selecting the battery type, the parameters will be set automatically. Users can also adjust it according to their needs. The system has been updated to be more intelligent and can control the charging voltage with absolute stability

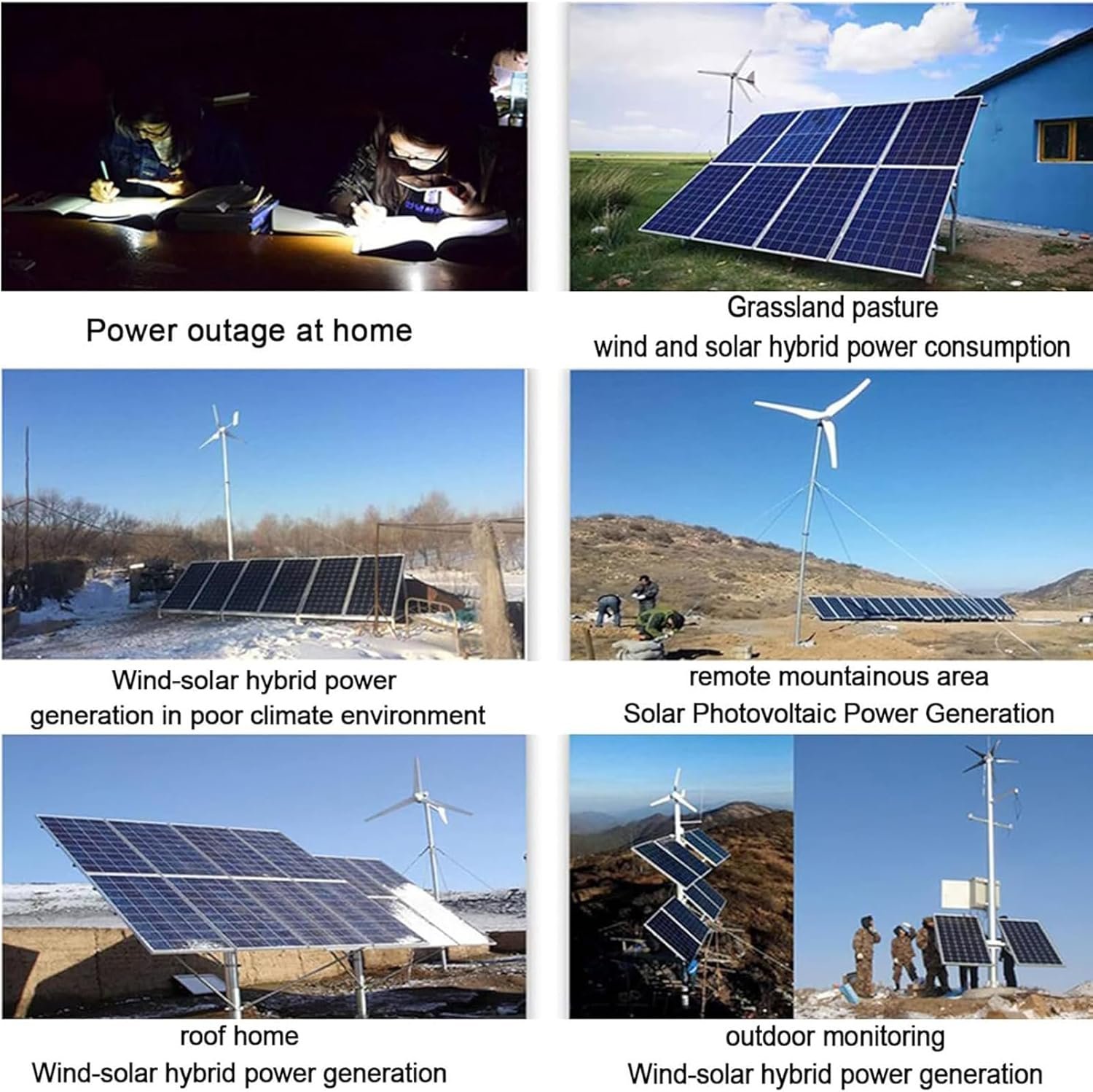

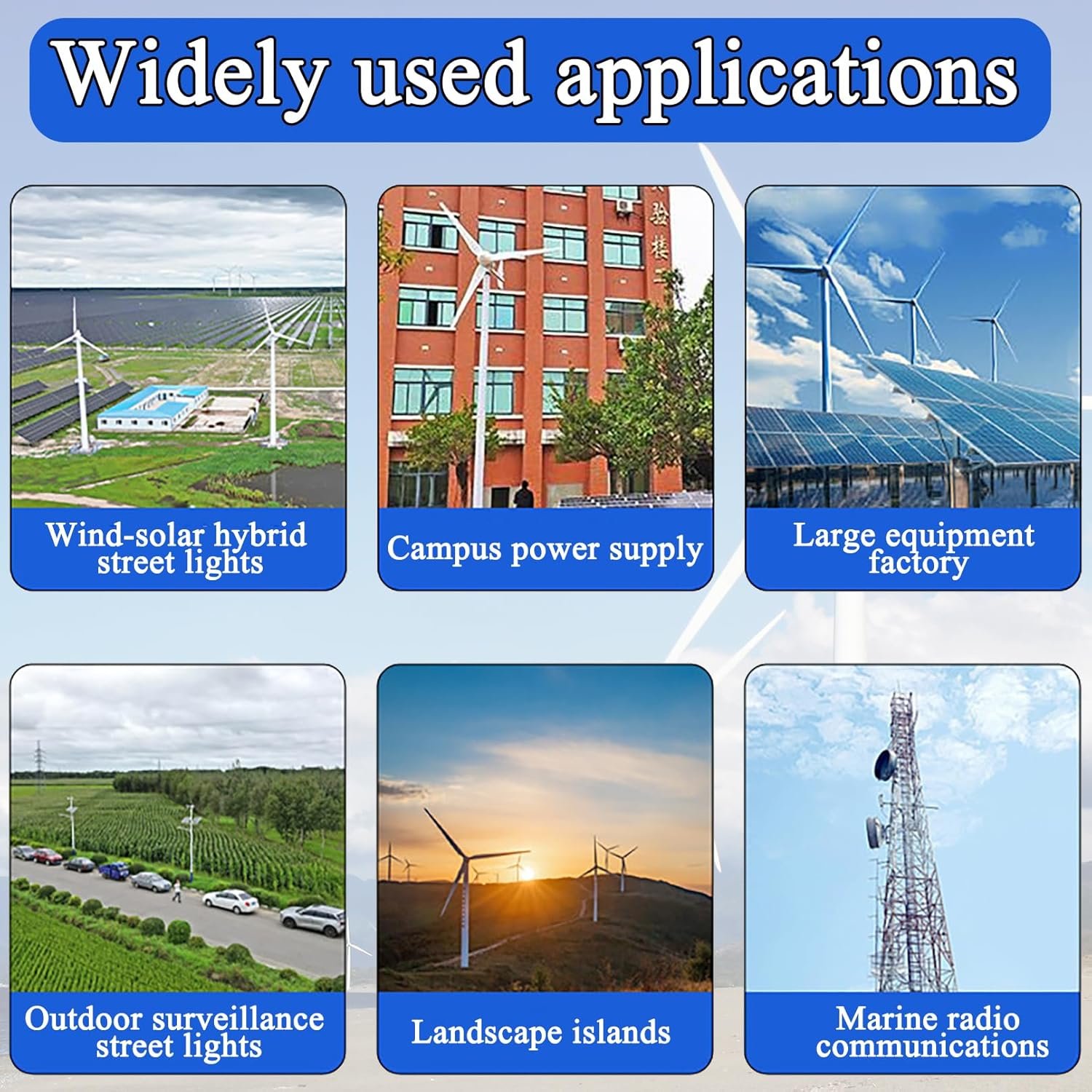

【Applicable scenarios】This charge controller is suitable for all 12V, 24V, and 48V batteries, including lithium batteries. Suitable for wind turbines and solar panels, hybrid wind and solar systems for houses, ships and street lights
