Price: £160.99
(as of Oct 06, 2025 11:09:46 UTC – Details)

▶▶This type of wind solar hybrid street light controller is a special design for small off-grid devices, where wind generators and solar panels charge batteries safely and efficiently.

▶▶MPPT boost charging function of the wind generator.

▶▶The display adopts LCD design, displaying more comprehensive information, clearer display interface, button interface, easier setting.

▶▶LCD displays parameters such as voltage and current of wind, sun and load. Some parameters can be set by the user.

▶▶Dual power supply function: battery + solar power supply.

▶▶Selection of multiple working modes: pure light control mode, normal open mode, light control + time control mode (four periods + morning light)

▶Specification：
●Systems rated voltage: 12V/24V/48V

☆The above three parameters must meet the conditions：
●(Wind power rating + photovoltaic rating) / Systems voltage ≤ 40A.
●Wind power rating/systems rating voltage ≤25A
●Photovoltaic rating/systems rating ≤25A
●No-load current (DC): ≤0.05A
●Controller power supply mode: battery or photovoltaic panel

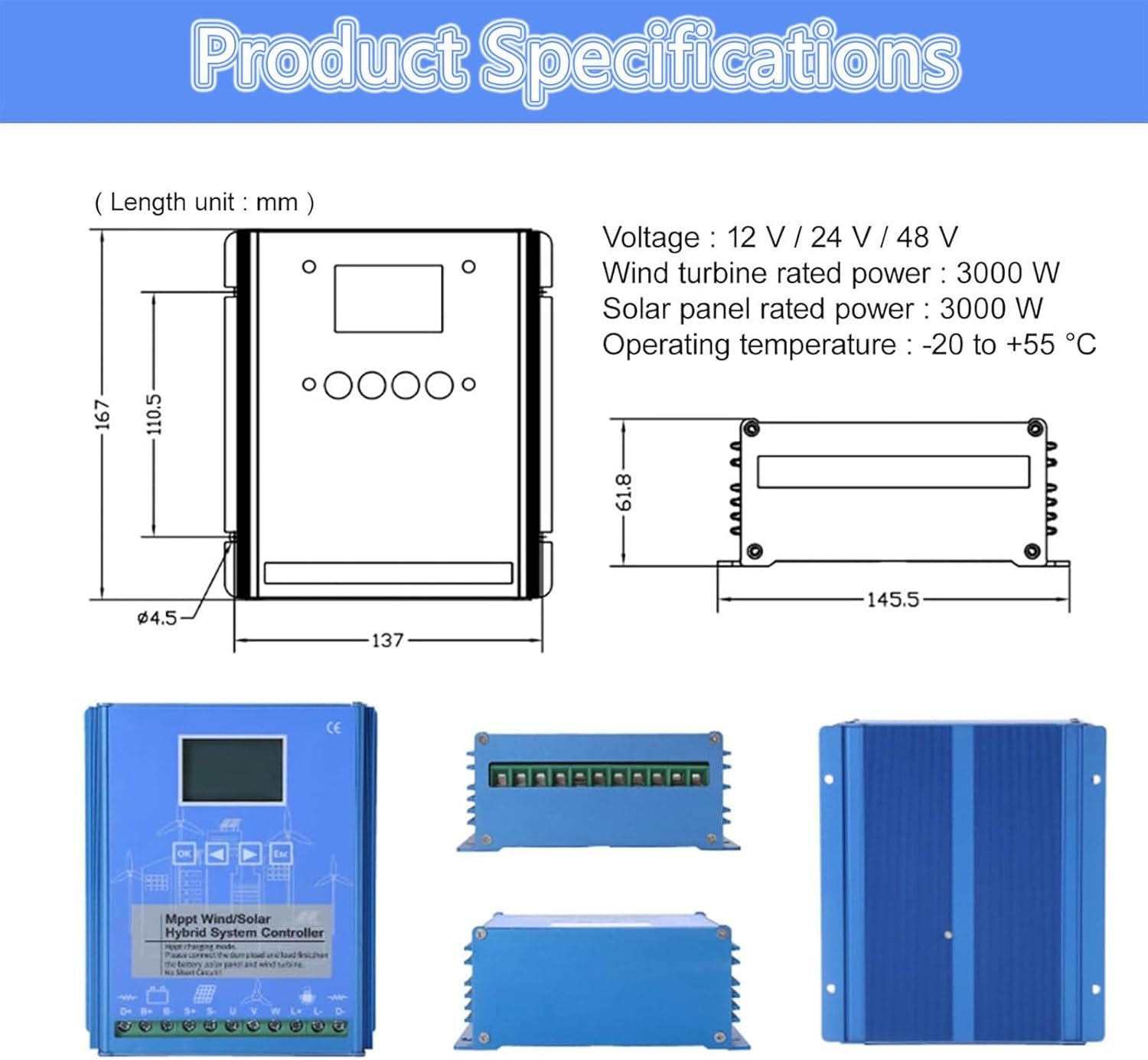

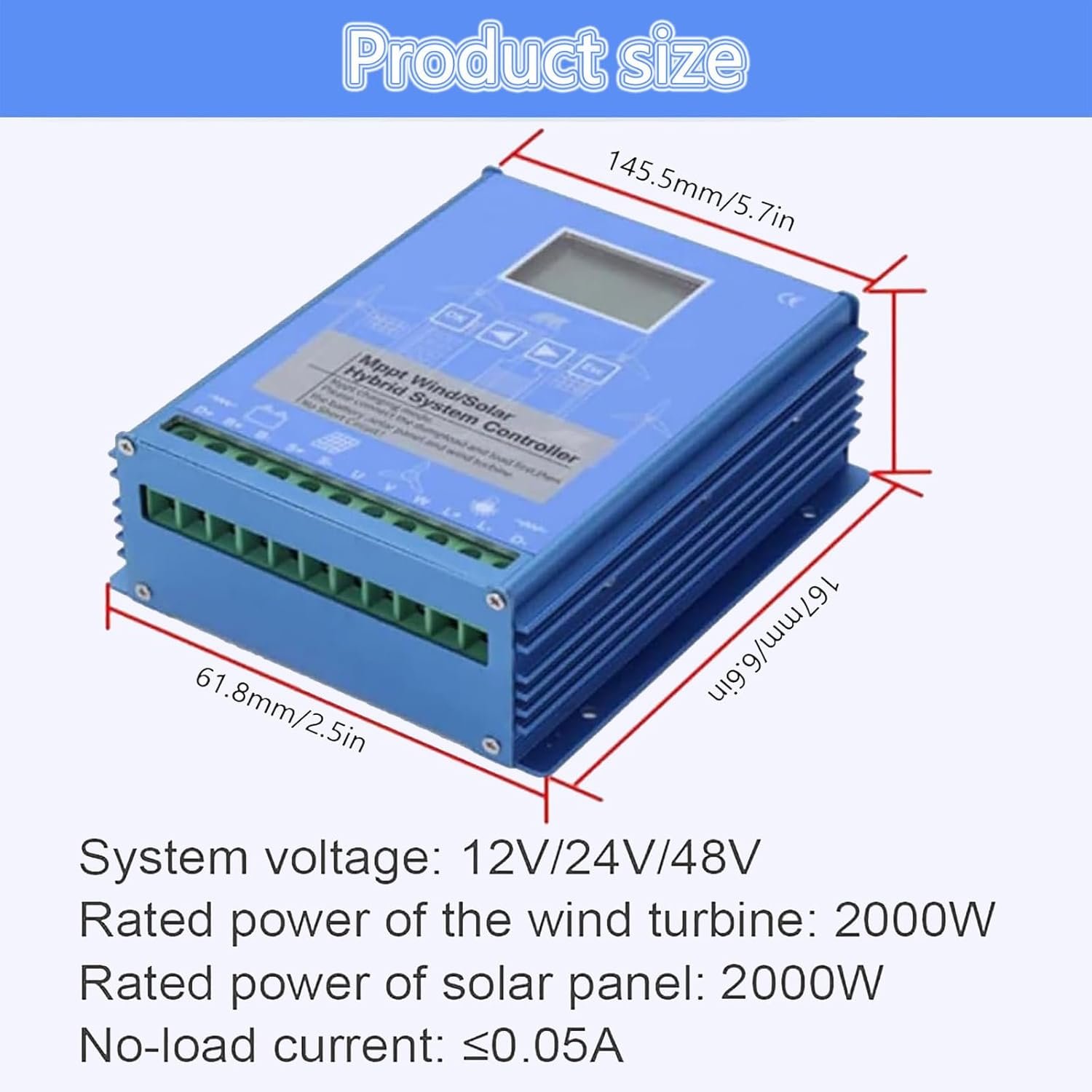

●Product size：167×145.5×61.8mm/6.57×5.73×2.43in
●Package size：360×250×120mm

▶Products include:
1 * wind and solar hybrid controller
1 * external discharge resistor
2 * connection cables
1 * instruction manual

▶Friendly reminder:
Working temperature and humidity range: – 20~+55℃/35~85% RH (no condensation)
➤【MPPT Technology & PWM Technology】The fan charging part adopts MPPT technology, which can continue to charge efficiently even at low wind speed. Stepless unloading function, including external unloading load resistor. The solar panel charging adopts PWM technology and is connected in series through MOS tubes
➤【Scope of use】The wind and solar hybrid controller charge controller is compatible with all 12V/24V/48V batteries. It is suitable for lithium, lead-acid, gel and other battery types. It is used for wind turbines and solar panels. It can be used in homes, boats, and street lights. The wind and solar complementary systems. Hybrid boost charging solar wind charging regulator. Wind turbine solar charger. MPPT voltage regulator
➤【Liquid crystal display】The hybrid regulator interface displays parameter information such as wind turbine, photovoltaic, battery, load, day and night, cumulative power generation, etc. in real time, making the easy and fast. Load modes suitable for street lights: Mode 1: Pure light control; Mode 3: Light control + time control; Load modes suitable for monitoring: Mode 2: The load works 24 hours a day

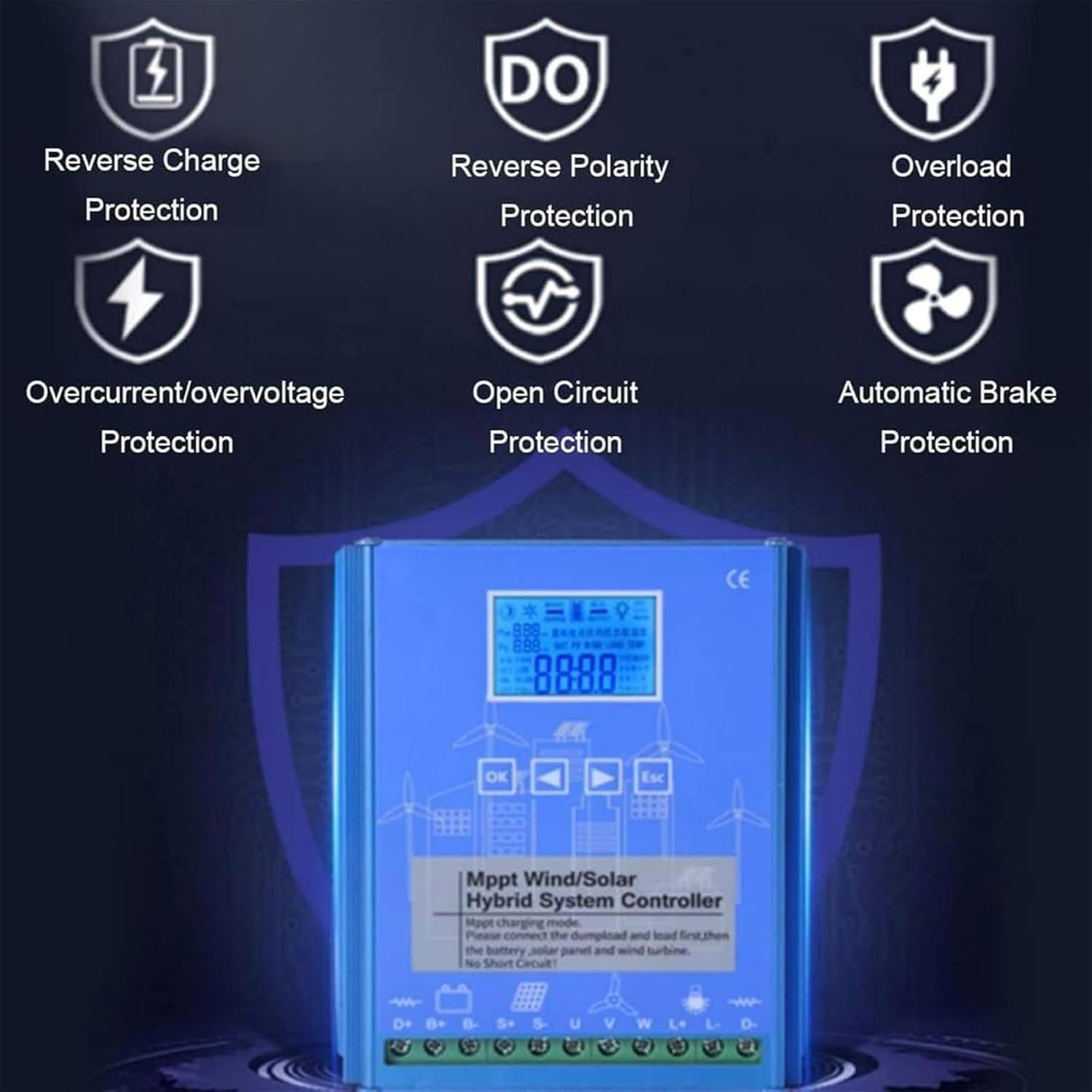

➤【MULTIPLE PROTECTIONS】This wind solar hybrid systems controller has solar reverse protection, overload, undervoltage and overload protection, battery reverse protection and open circuit protection, overload protection
➤【Applicable scenarios】This charge controller is suitable for all 12V, 24V, and 48V batteries, including lithium batteries. Suitable for wind turbines and solar panels, hybrid wind and solar systems for houses, ships and street lights
