Price: £168.99
(as of Oct 11, 2025 02:49:18 UTC – Details)

⚽︎Welcome to the “HONGPINGSHOP” store to find more similar products.

⚽︎The wind-solar hybrid street light controller is designed for small off-grid devices where wind turbines and solar panels charge batteries safely and efficiently. Of course, with some simple settings, the controller can also be used in home systems.

⚽︎Specifications:
-System rated voltage: 12V/24V/48V
-No-load current (DC): ≤0.05A
-Controller power supply mode: battery or photovoltaic panel
-Control method: fan MPPT boost, PWM unloading, PWM overcurrent
-Load: Multiple working mode options: pure light control mode, normally open mode, light control + time control mode (four periods + morning light)
-Display mode: LCD display
-Display parameters: voltage, battery power, current, power, load mode, temperature, etc.
-Heat dissipation method: aluminum profile heat dissipation and self-cooling
-Operating temperature and humidity range: – 20~+55℃/35~85%RH (no condensation)

⚽︎Functions and features:
– Wind turbine MPPT boost charging function.
– Wind energy PWM unloading, external unloading resistor, intelligent solar charging separation.
– Dual power supply function: battery + solar power.
– LCD displays wind, day, load voltage, current and other parameters. Some parameters can be set by the user.
-DC output, three output modes.

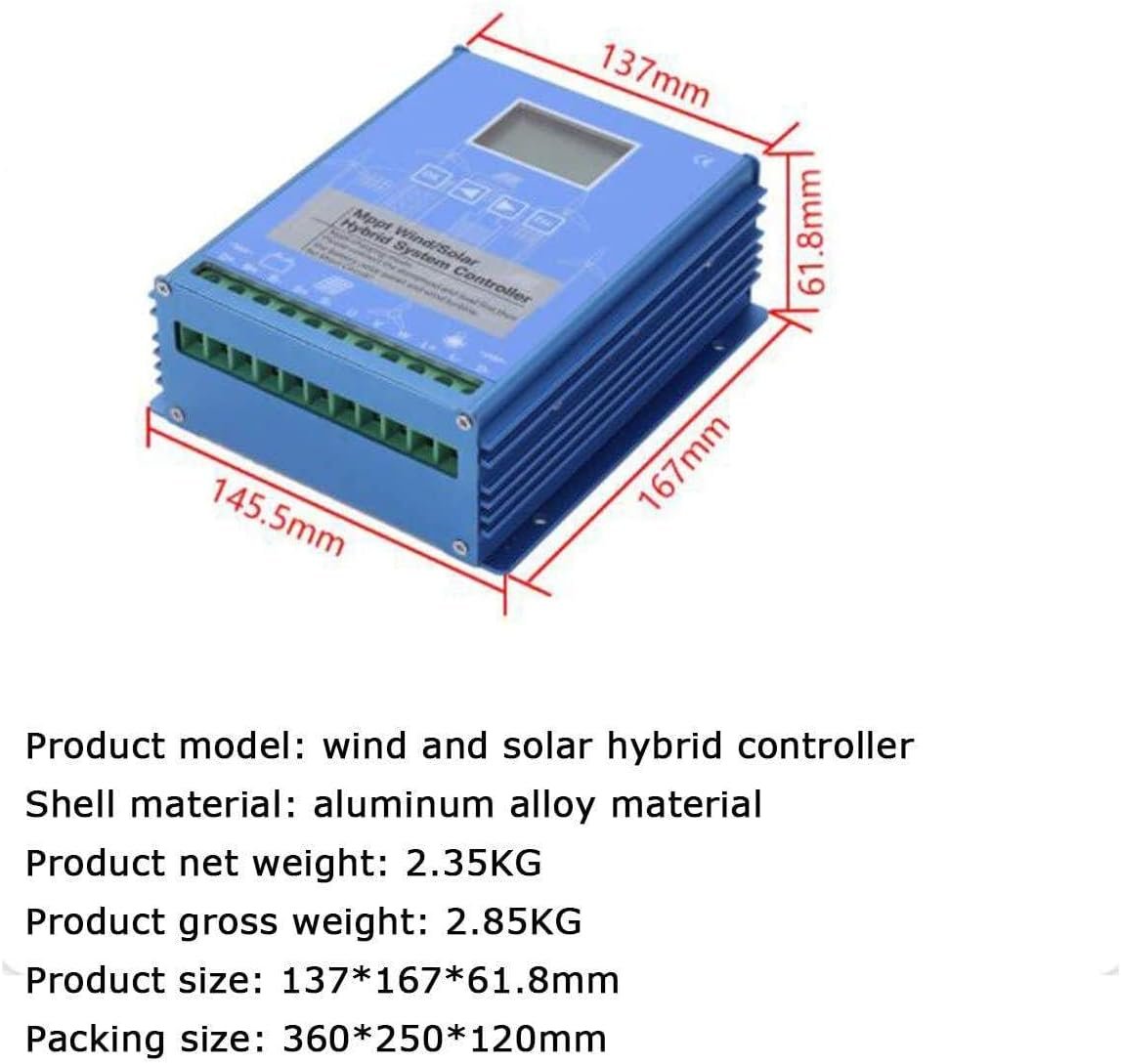

– Made of high-quality aviation aluminum, one-time molded tensile material, anodized surface, impact-resistant and fall-resistant.

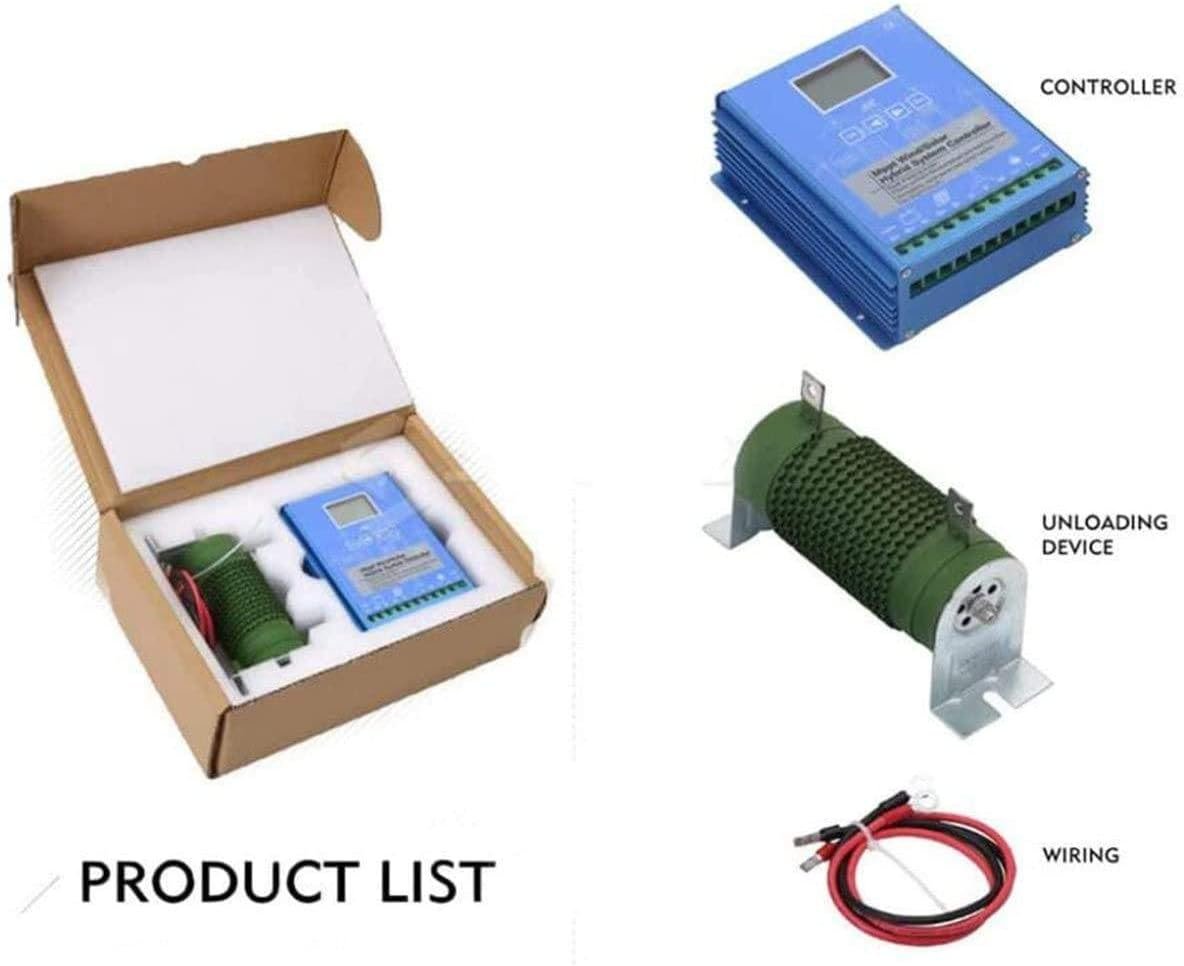

⚽︎Packaging list:
1x Wind Solar Hybrid Charge Controller

⚽︎Notes:

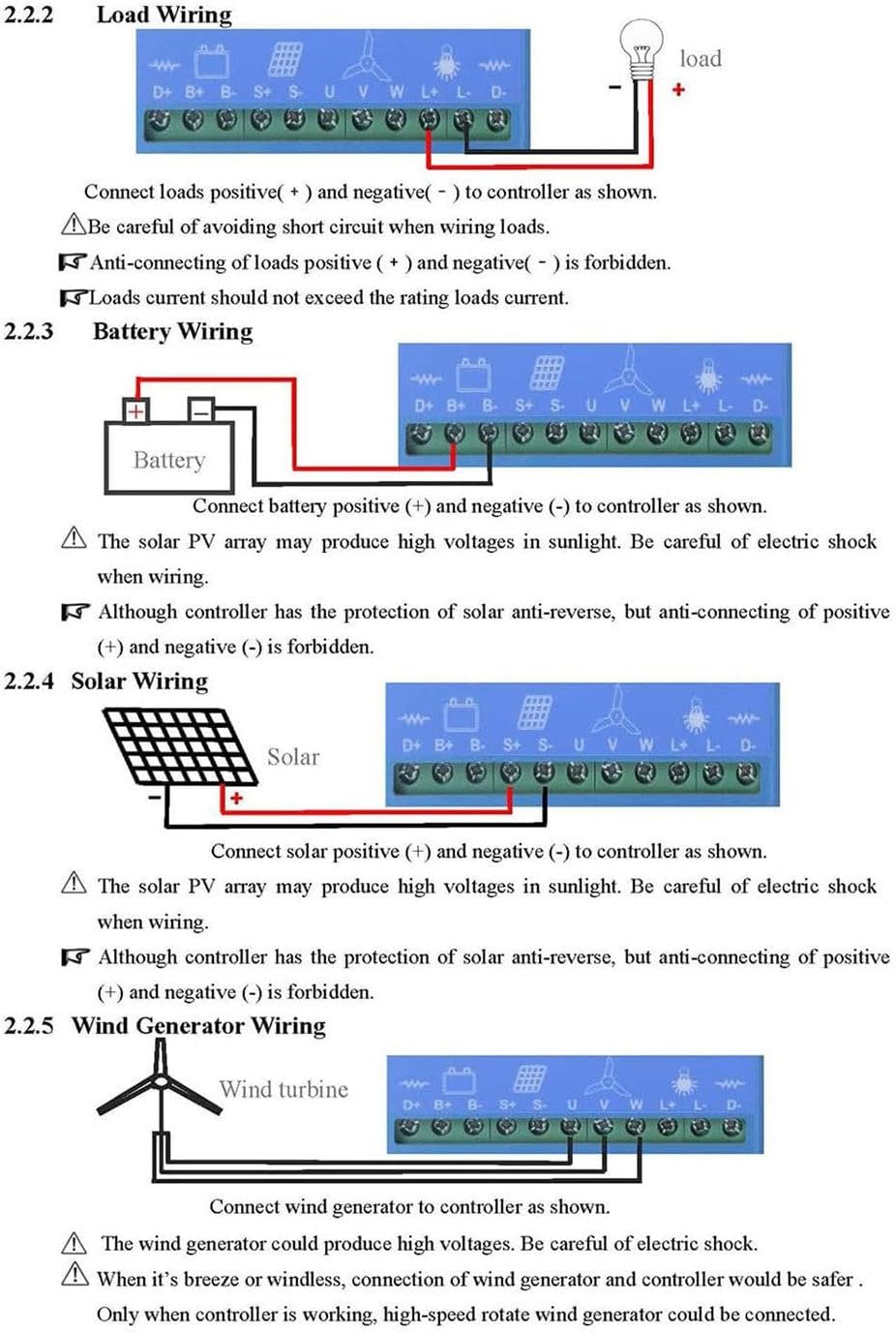

1. Correct connection sequence.
2. Please connect the wires between the battery and the controller
⚽︎【Pressure MPPT Technology】The charging part of the wind turbine adopts boost MPPT technology, allowing it to charge continuously and efficiently even at low wind speeds. Stepless discharge function including external unloading resistor. Solar panel charging uses PWM technology through MOS tubes in series.

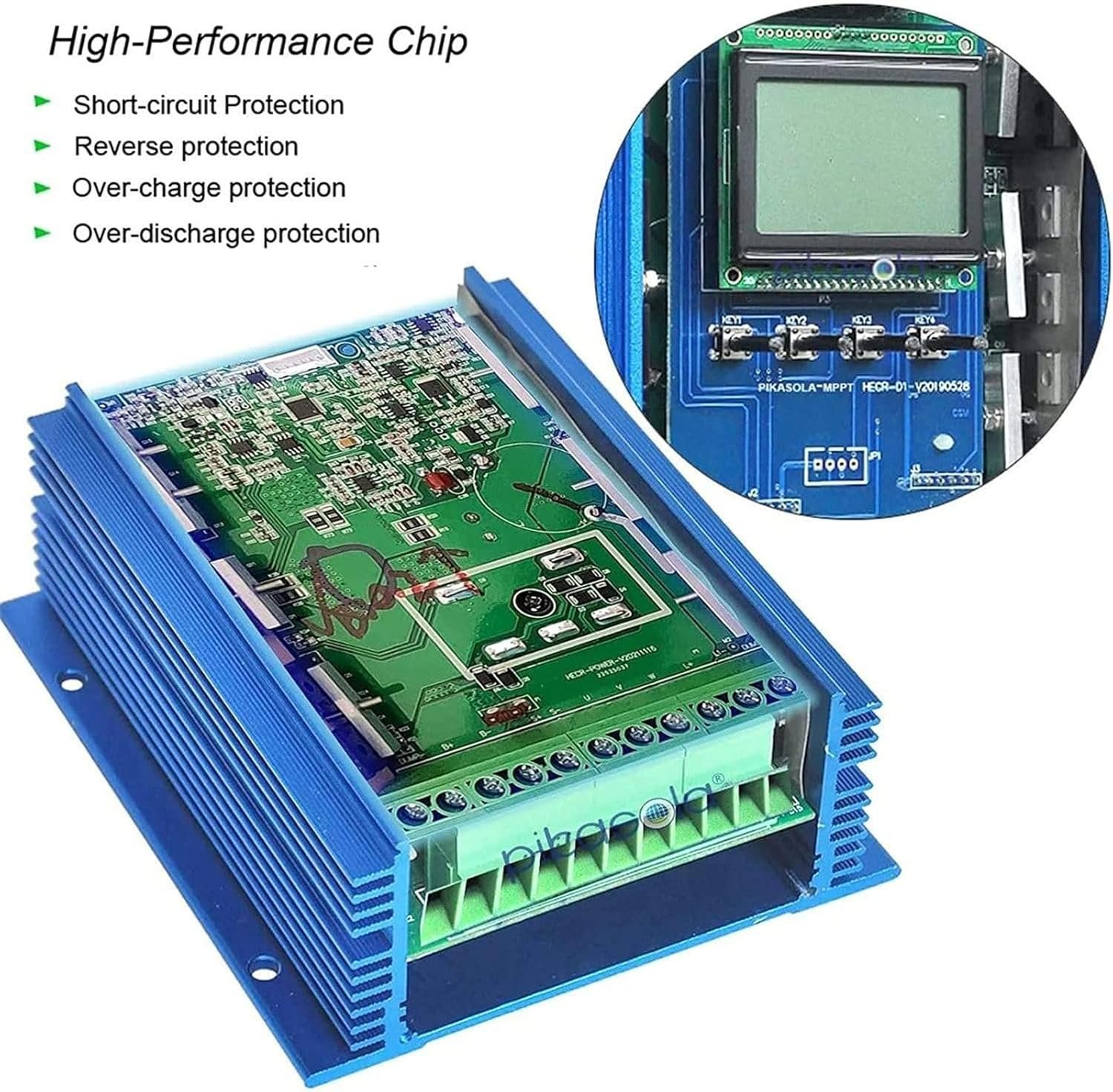

⚽︎【Multiple Protection】: This controller has solar reverse connection protection, overcharge, undervoltage and overload protection, battery reverse connection and open circuit protection, lightning protection, etc.
⚽︎【Smart and Stable System】After selecting the battery type, the parameters will be set perfectly. Users can also customize it according to their needs. The system has been upgraded to be more intelligent and the charging voltage control is absolutely stable.

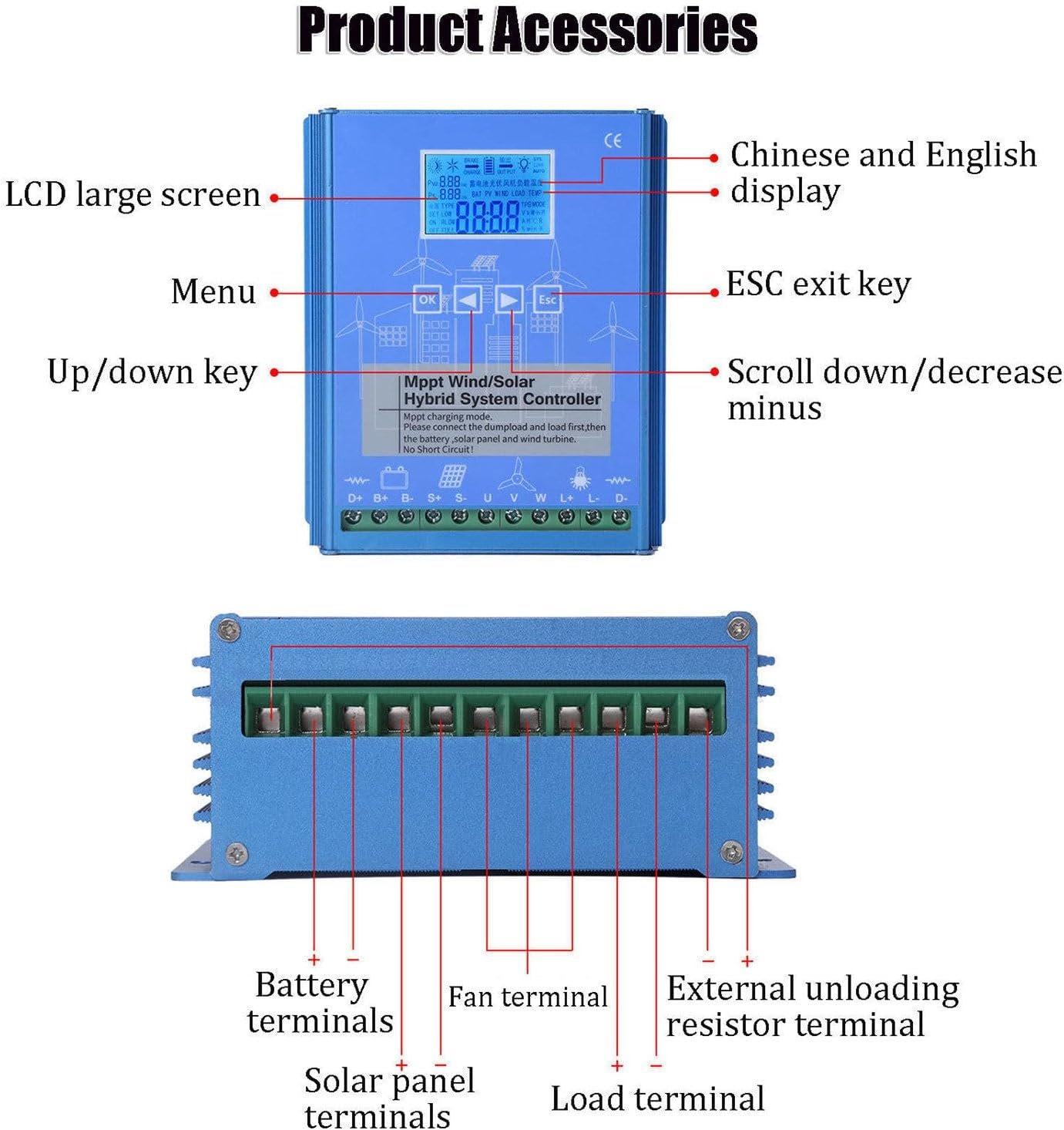

⚽︎【3 Output Modes】: The controller is equipped with an LCD screen for easy navigation and operation. The DC load output has 3 output modes, and each mode can be set differently.

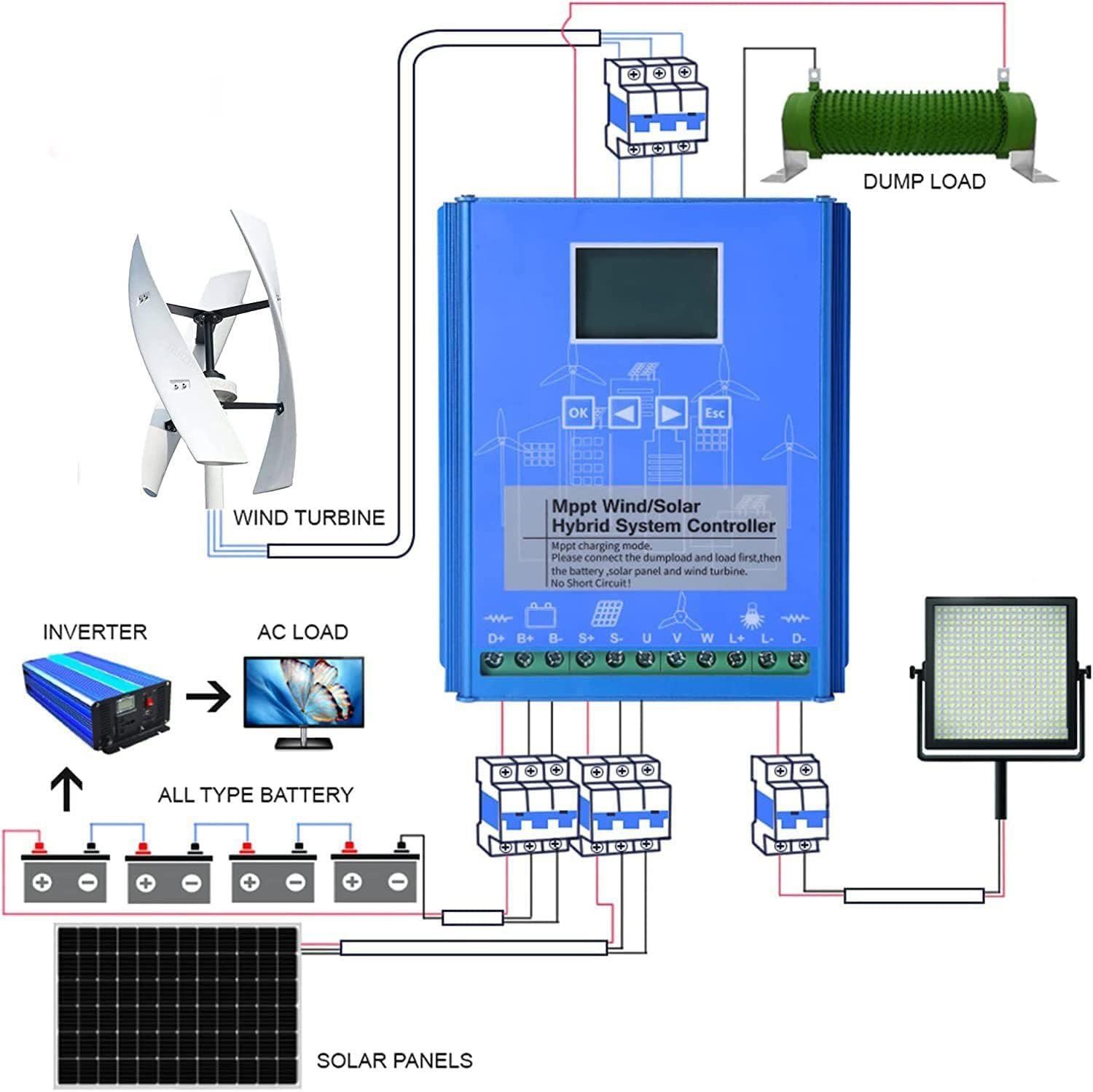

⚽︎【Applicable Scenarios】: This charge controller is suitable for all 24 or 48V batteries, including lithium batteries. Suitable for wind turbines and solar panels, suitable for wind and solar hybrid systems for houses, ships and street lights.
