Specification:
Project Type: Wind Solar Hybrid Charge Controller
Rated system voltage: 12V, 24V, 48V
The above three parameters:
(wind power rated power + photovoltaic rated power) / system voltage ≤ 40a
Wind rated power/system rated voltage≤25a
Photovoltaic rated power/system rated power≤25a
No-load current (DC): ≤0.05A
Controller power supply mode: battery or photovoltaic panel
Display parameters: voltage, battery power, current, power, charging mode, temperature, etc.
Protection type: solar battery reverse connection protection, battery open circuit protection, battery reverse connection protection, overcurrent and overvoltage soft automatic brake protection, overload protection, etc.

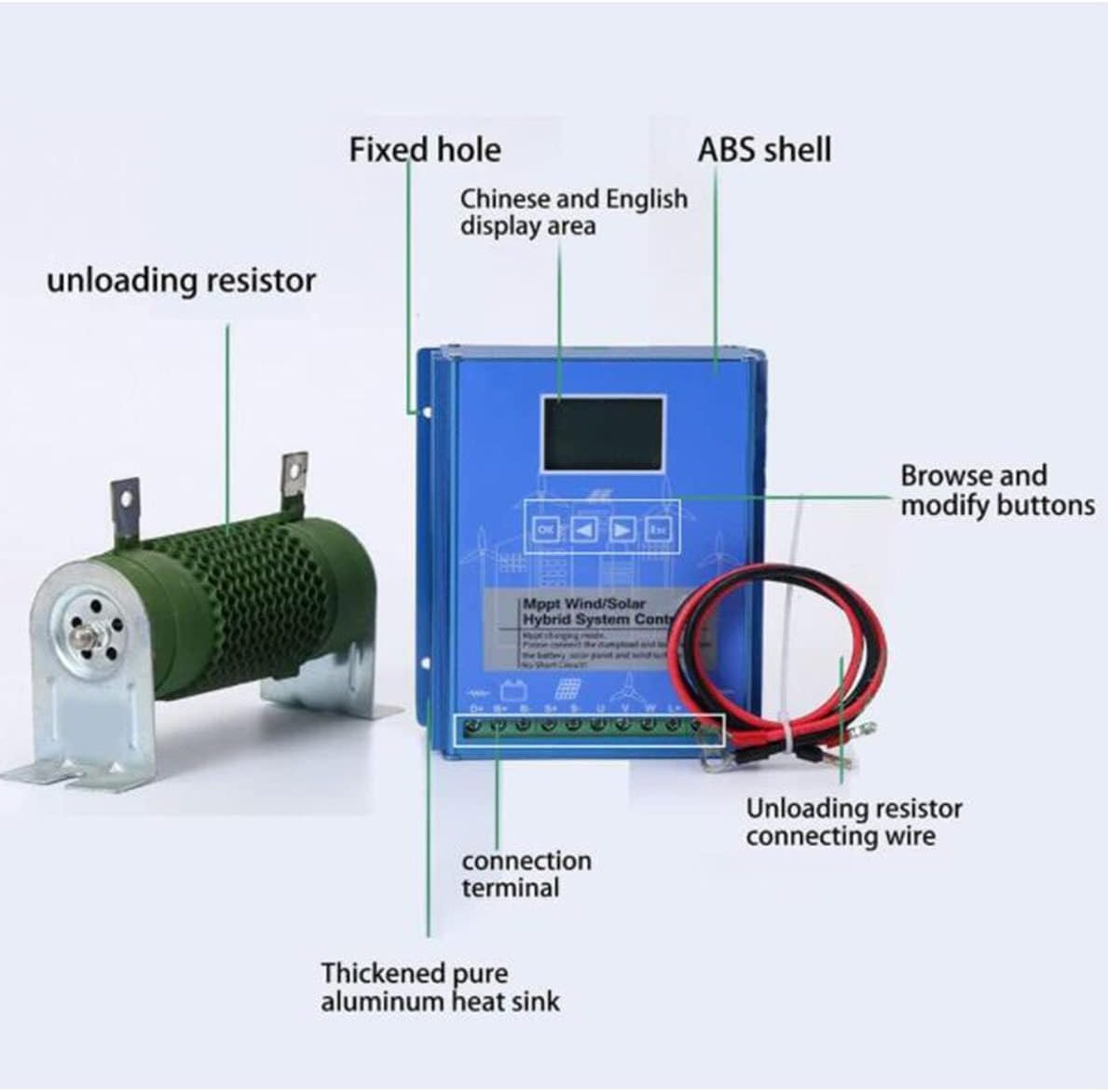

Heat dissipation method: aluminum profile heat dissipation and self-cooling
Working temperature and humidity range: – 20~+55℃/35~85%Rh (no condensation)

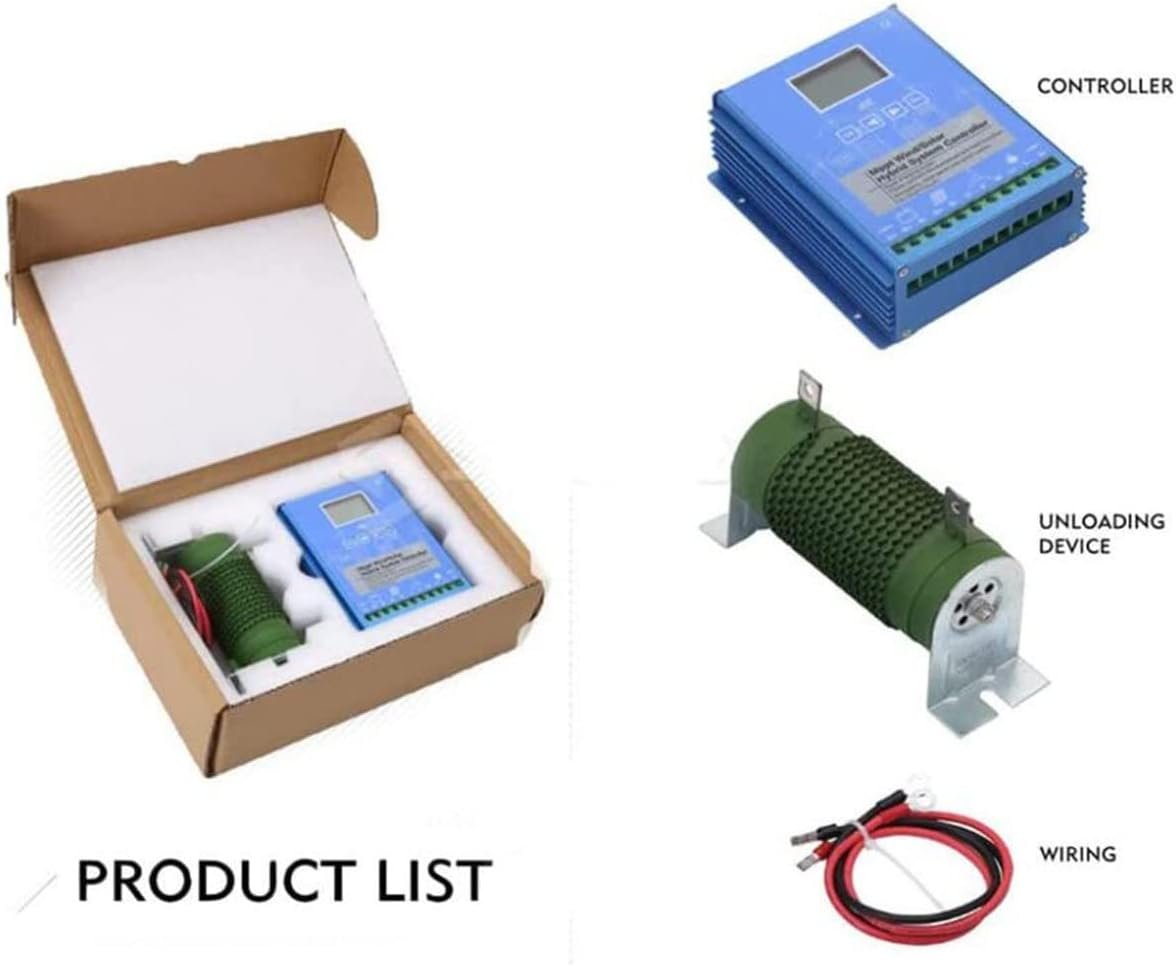

packing list:
1 x Wind Solar Hybrid Controller
❤【Hybrid Charge Controller】This hybrid charge controller can automatically identify and match all 12V, 24V, 48V batteries suitable for wind turbines and solar panels, wind and solar supplementary systems for homes, boats and street lights.
❤【Protection Function】Built-in solar reverse connection protection, overcharge, undervoltage and overload protection, battery reverse connection protection and open circuit protection, lightning protection, etc., safe and reliable.
❤【Using boost MPPT】The multi-control mode wind turbine charging adopts boost MPPT technology, which can be charged efficiently even at low wind speeds. It is equipped with an external discharge resistor, and the solar panel charging uses MOS tube series PWM technology.
❤【Automatically set parameters】The parameters are automatically set after selecting the battery type, users can also adjust according to their own needs, and the controller controls the charging voltage to be stable.
❤【Intelligent Stable System】After selecting the battery type, the parameters will be set automatically, users can also customize it according to their own needs, the system upgrade is more intelligent, and the charging voltage is absolutely stable and controlled.
